SEAT BELT FRONT CENTER SEAT OUTER BELT(for Sliding Bench Seat Type) INSPECTION
PROCEDURE
73120

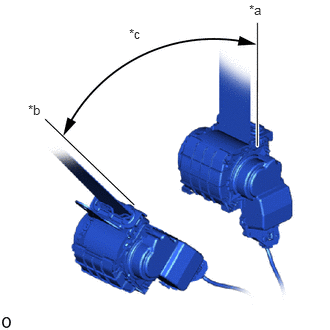

1.INSPECT FRONT SEAT 3 POINT TYPE BELT ASSEMBLY LH
a.
2.594,0.021 2.906,0.177
0.313,0.156
10
false
*a
0.292,1.063 0.604,1.219
0.313,0.156
10
false
*b
1.344,0.271 1.656,0.427
0.313,0.156
10
false
*c
| *a | Unlock |
| *b | Lock |
| *c | 45° |
Before installing the front seat 3 point type belt assembly LH, check the ELR function.
- NOTICE:
-
Do not disassemble the retractor.
i.
When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the result is not as specified, replace the front seat 3 point type belt assembly LH.
