SEAT BELT FRONT CENTER SEAT INNER BELT(for Sliding Bench Seat Type) INSPECTION
PROCEDURE
73250
1.INSPECT FRONT CENTER SEAT BELT ASSEMBLY (for LHD)
a.
Check the resistance.
i.
1.573,0.354 1.885,0.51
0.313,0.156
10
false
*a
1.604,2.406 1.917,2.563
0.313,0.156
10
false
*b
0.177,0.188 0.49,0.344
0.313,0.156
10
false
*c

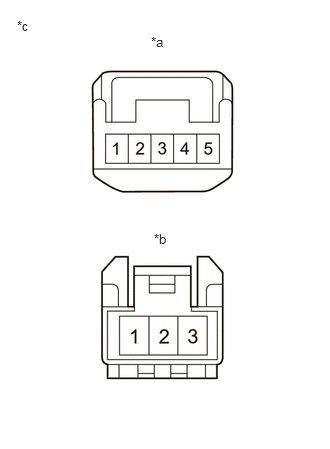

| *a | Connector A |
| *b | Connector B |
| *c | Component without harness connected
(Front Center Seat Belt Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition If the result is not as specified, replace the front center seat belt assembly.
A-2 - B-1 Always Below 1 Ω A-1 - B-3 Seat belt unfastened Below 1 Ω Seat belt fastened 10 kΩ or higher
73250
2.INSPECT FRONT CENTER SEAT BELT ASSEMBLY (for RHD)
a.
Check the resistance.
i.
1.573,0.354 1.885,0.51
0.313,0.156
10
false
*a
1.604,2.406 1.917,2.563
0.313,0.156
10
false
*b
0.177,0.188 0.49,0.344
0.313,0.156
10
false
*c
| *a | Connector A |
| *b | Connector B |
| *c | Component without harness connected
(Front Center Seat Belt Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition If the result is not as specified, replace the front center seat belt assembly.
A-2 - B-1 Always Below 1 Ω A-1 - B-3 Seat belt unfastened Below 1 Ω Seat belt fastened 10 kΩ or higher
