RM35X0E _55 Steering _079314 STEERING GEAR / LINKAGE _0388802 STEERING GEAR(for LHD) G

STEERING GEAR / LINKAGE STEERING GEAR(for LHD) INSPECTION

CAUTION / NOTICE / HINT

NOTICE:: ·

When using a vise, place aluminum plates between the part and vise.

·

When using a vise, do not overtighten it.

Hide Display 1.INSPECT TIE ROD END SUB-ASSEMBLY

Move the ball joint stud back and forth 5 times as shown in the illustration, before installing the nut.

Using a torque wrench, turn the nut continuously at a rate of 3 to 5 seconds per turn and take the torque reading on the fifth turn.

Standard turning torque:: 0.98 to 3.92 N*m (10 to 39 kgf*cm, 9 to 34 in.*lbf)

If the turning torque is not within the specified range, replace the tie rod end sub-assembly with a new one.

Hide Display 2.INSPECT POWER STEERING LINK ASSEMBLY

1.875,0.229 2.208,0.354 false 1.552,0.135 2.01,0.333 0.458,0.198 10 false SST

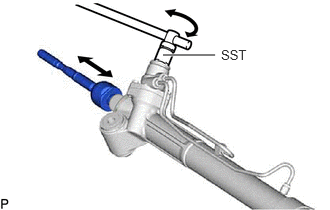

Using SST, check that the steering rack boots stretches smoothly when the control valve shaft is being rotated.

If there is any abnormality, replace the steering rack end boots with a new one.

Hide Display 3.INSPECT TOTAL PRELOAD

Temporarily install the 2 steering rack ends to the steering rack.

NOTICE:: Do not fully turn the steering rack without the steering rack ends installed as it may damage the oil seal in the rack housing.

1.698,0.573 2.24,0.573 true 2.302,0.49 2.76,0.688 0.458,0.198 10 false SST

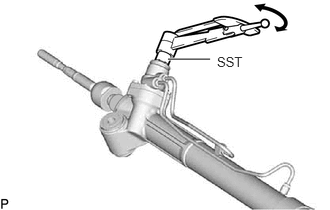

Using SST, fully turn the steering rack right and left 10 times to settle it.

1.75,0.615 2.188,0.615 true 2.26,0.563 2.719,0.76 0.458,0.198 10 false SST

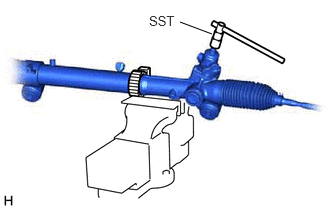

Using SST, turn the control valve and measure the preload.

Standard preload (turning):: 2.0 to 2.8 N*m (21 to 28 kgf*cm, 18 to 24 in.*lbf)

If the turning torque is not as specified, replace the steering gear assembly.

HINT:: ·

Measure the standard preload at the steering rack neutral point.

·

The steering control valve is fully turned when turned 3.0 times. Half of the distance from the fully turned position is the neutral point.
