RM35X0E _55 Steering _079313 STEERING COLUMN _0388799 STEERING COLUMN ASSEMBLY A

STEERING COLUMN STEERING COLUMN ASSEMBLY REASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:: ·

When using a vise, place aluminum plates between the part and vise.

·

When using a vise, do not overtighten it.

Hide Display 45020B 1.INSTALL STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY (w/ Entry and Start System)

HINT:: When replacing the steering lock actuator assembly, refer to the Service Bulletin.

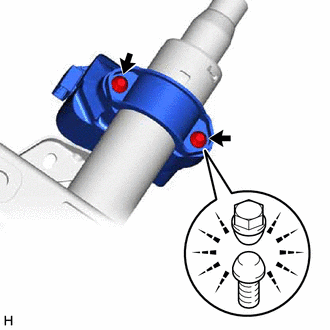

Install the steering lock actuator assembly with the tapered-head bolt.

Tighten the tapered-head bolt until the bolt head breaks off.

Hide Display 84450 2.INSTALL IGNITION OR STARTER SWITCH ASSEMBLY (w/o Entry and Start System)

Hide Display 84052 3.INSTALL UN-LOCK WARNING SWITCH ASSEMBLY (w/o Entry and Start System)

Hide Display 69057A 4.INSTALL IGNITION SWITCH LOCK CYLINDER ASSEMBLY (w/o Entry and Start System)

Make sure that the ignition switch lock cylinder assembly is in the ACC position.

Install the ignition switch lock cylinder assembly.

Hide Display 5.INSPECT STEERING LOCK OPERATION

Check that the steering lock mechanism is activated when the key is removed.

Check that the steering lock mechanism is deactivated when the key is inserted and turned to the ACC position.

If there is any abnormality, replace the ignition switch lock cylinder assembly.

Hide Display 45020B 6.INSTALL STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY (w/o Entry and Start System)

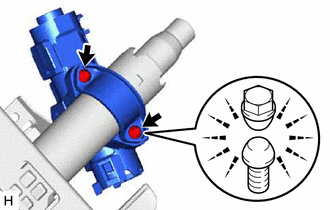

Install the steering column upper with switch bracket assembly with the tapered-head bolt.

Tighten the tapered-head bolt until the bolt head breaks off.

Hide Display 89782 7.INSTALL TRANSPONDER KEY COIL (w/o Entry and Start System)
