RM35X0E _59 Vehicle Exterior _079318 WINDOW / GLASS _0388651 FRONT SIDE WINDOW GLASS A

WINDOW / GLASS  FRONT SIDE WINDOW GLASS  REASSEMBLY


CAUTION / NOTICE / HINT

NOTICE:
B377631C01
0,0 0,0 false
V100145

Metal Plate

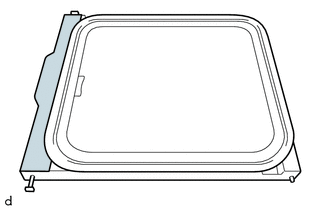

Do not strongly grip the metal plate that runs along the outside of the glass. Otherwise, deformation may occur.


PROCEDURE

Hide 62774F 1.INSTALL FRONT SIDE WINDOW SLIDER LH

a.
B377932

Install the 2 front side window slider LH.


Hide 62755M 2.INSTALL FRONT SIDE WINDOW RUN LH

a.
B541099C01
2.052,2.594 1.542,2.688 true 2.042,4.271 1.531,4.229 true 2.042,3.146 2.115,2.875 true 2.094,4.302 1.854,4.5 true 1.344,4.125 1.656,4.323 0.313,0.198 10 false *a 1.979,3.188 2.292,3.385 0.313,0.198 10 false *b 1.677,4.417 1.99,4.615 0.313,0.198 10 false *b 1.365,2.594 1.677,2.792 0.313,0.198 10 false *a 0.729,0.896 0.885,1.094 0.156,0.198 10 false A 1.323,0.896 1.479,1.094 0.156,0.198 10 false A 1.708,0.156 1.865,0.354 0.156,0.198 10 false A 1.708,0.76 1.865,0.958 0.156,0.198 10 false A 1.781,1.083 1.938,1.281 0.156,0.198 10 false A 1.781,1.667 1.938,1.865 0.156,0.198 10 false A 2.042,0.823 2.198,1.021 0.156,0.198 10 false A 2.698,0.823 2.854,1.021 0.156,0.198 10 false A 0.656,1.865 1.115,2.063 0.458,0.198 10 false A-A
*a Marking
*b Rib
V113147

Install in this Direction

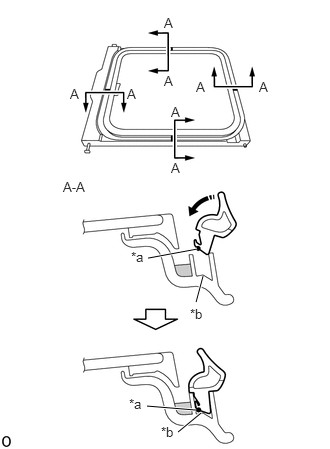

Align the markings of the front side window run LH with the center of each side of the opening, and then insert the slide door window run against the rib.

NOTICE:
·

Install in the order shown in the illustration.

·

Insert from the outer side toward the inner side in the direction indicated by the arrow shown in the illustration.




b.
B377634

Insert the center points of the corners of the slide door window run.


c.
B544254C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)

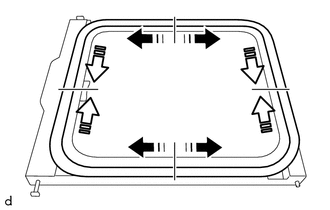

Insert the slide door window run from the center of the top and bottom sides toward the center of the front and rear sides in the order indicated by the arrows shown in the illustration.


d.
B377636

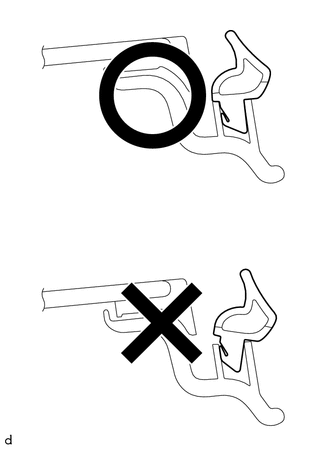

Make sure that the front side window run LH is securely seated.


e.

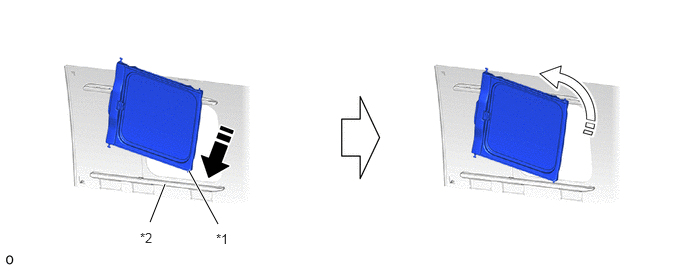

While tilting the slide door glass LH forward, insert the front bottom pin into the lower rail.

B541100C01
1.969,1.781 2.271,2.333 true 1.719,1.917 1.563,2.313 true 2.25,2.406 2.563,2.604 0.313,0.198 10 false *1 1.458,2.396 1.771,2.594 0.313,0.198 10 false *2
*1 Front Bottom Pin *2 Lower Rail
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)



f.

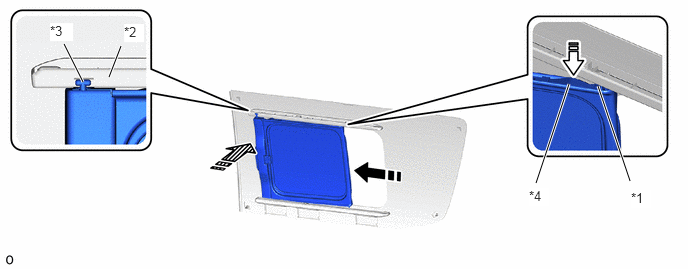

Return the slide door glass LH to a position parallel with the rails in the direction of the arrow (1) shown in the illustration and insert the front upper pin into the upper rail in the direction of the arrow (2) shown in the illustration.

B541101C01
0.865,0.854 0.667,0.458 true 1.135,0.802 1.26,0.479 true 6.563,1.885 6.229,0.896 true 5.583,1.906 5.927,0.875 true 0.521,0.24 0.76,0.427 0.24,0.188 10 true *3 1.292,0.25 1.5,0.438 0.208,0.188 10 true *2 6.573,1.979 6.781,2.167 0.208,0.188 10 true *1 5.51,1.958 5.719,2.146 0.208,0.188 10 true *4
*1 Front Upper Pin *2 Upper Rail
*3 Rear Pin *4 Upper Leaf Spring
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V100137

Install in this Direction (3) - -



g.

Slide the slide door glass LH, and while pushing the knob, insert the rear pins into the rail in the direction of the arrow (3) shown in the illustration.

NOTICE:

Press the upper leaf spring while inserting the part to prevent the leaf spring from catching on the slider.



Hide 62673C 3.INSTALL FRONT SIDE WINDOW RAIL COVER LH

a.
B545852C01
1.427,0.594 1.667,0.448 true 1.677,0.323 1.99,0.521 0.313,0.198 10 false *1
*1 Rear Pin

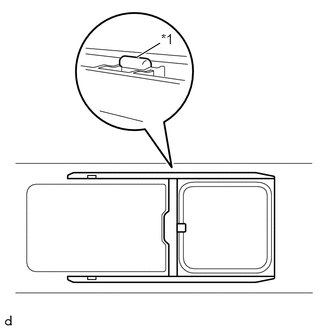

Fully close the slide door glass LH.

NOTICE:

Check that the rear pin is protruding from the hole in the center of the rail.



b.
B541102

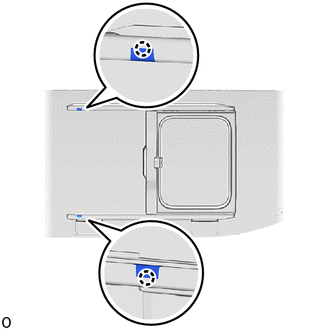

Attach the claw to install the 2 front side window rail cover LH.
