WINDOW / GLASS  FRONT SIDE WINDOW GLASS  DISASSEMBLY

0,0 0,0 false

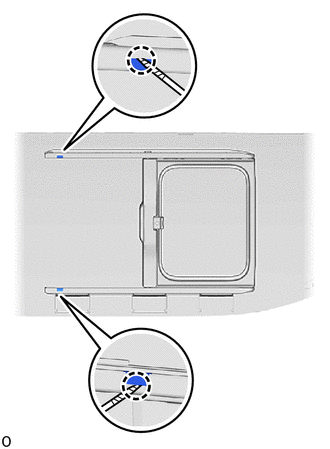

Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the 2 front side window rail cover LH.

HINT:

Tape the thin-bladed screwdriver tip before use.

0,0 0,0 false

Slide in this Direction

While pressing the knob of the slide door glass LH, slide the slide door glass LH until the rear pins can be seen in the cutouts of the cover.

0,0 0,0 false

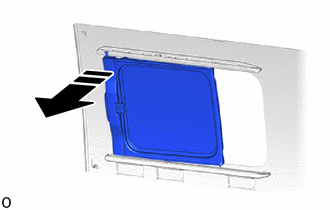

Remove in this Direction

Pull the rear part of the slide door glass LH in the direction indicated by the arrow shown in the illustration to remove the rear pins from the rail.

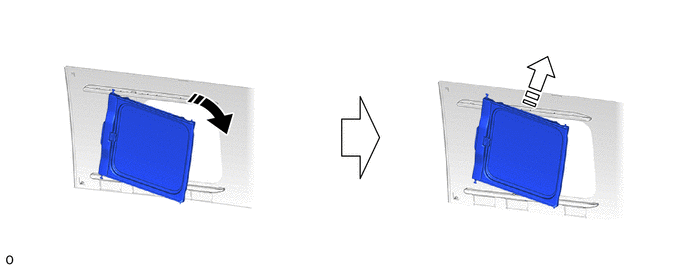

Tilt the front top corner of the slide door glass LH forward in the direction indicated by the arrow (1) shown in the illustration to remove the pin, and then remove the slide door glass LH in the direction indicated by the arrow (2) shown in the illustration.

0,0 0,0 false

Remove in this Direction (1)

Remove in this Direction (2)

Remove the front side window run LH.

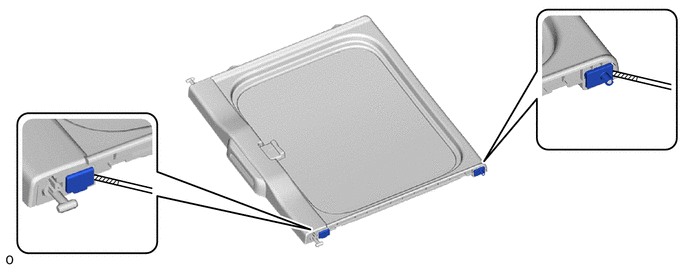

Using a thin-bladed screwdriver, remove the 2 front side window slider LH.

0,0 0,0 false

Protective Tape

-

-
