DOOR LOCK WIRELESS DOOR LOCK BUZZER(for RHD) REMOVAL

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201902,999999,_V1,_078672,_0387313,RM100000001GWDK,

Hide Display 53851D 2.REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK BUZZER (for LHD)>REMOVAL201902,999999,_58,_078336,_0388569,RM100000001H316_01_0010,

Hide Display 76621D 3.REMOVE FRONT FENDER MUDGUARD RH (w/ Mudguard)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>MUDGUARD (for Front Side)>REMOVAL201902,201906,_59,_079322,_0388042,RM100000001H1B2_01_0001,201906,999999,_59,_079322,_0388042,RM100000001IMWA_01_0001,

Hide Display 53875A 4.REMOVE FRONT FENDER LINER RH (for Type A)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK BUZZER (for LHD)>REMOVAL201902,999999,_58,_078336,_0388569,RM100000001H316_01_0007,

Hide Display 53875A 5.REMOVE FRONT FENDER LINER RH (for Type B)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK BUZZER (for LHD)>REMOVAL201902,999999,_58,_078336,_0388569,RM100000001H316_01_0016,

Hide Display 47749F 6.REMOVE PIN HOLD CLIP

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER>REMOVAL201902,201906,_59,_079322,_0385747,RM100000001GNTU_01_0068,201906,999999,_59,_079322,_0397093,RM100000001IMTD_01_0072,

Hide Display 53879H 7.REMOVE FRONT FENDER LINER RETAINER

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER>REMOVAL201902,201906,_59,_079322,_0385747,RM100000001GNTU_01_0069,201906,999999,_59,_079322,_0397093,RM100000001IMTD_01_0073,

Hide Display 89747 8.REMOVE WIRELESS DOOR LOCK BUZZER

a.

B540306

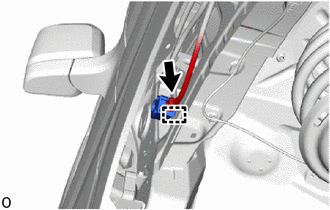

Using a clip remover, detach the clamp.

b.

Disconnect the connector and remove the wireless door lock buzzer.
