RM35X0E _58 Vehicle Interior _078336 DOOR LOCK _0388569 WIRELESS DOOR LOCK BUZZER(for LHD) A

DOOR LOCK  WIRELESS DOOR LOCK BUZZER(for LHD)  INSTALLATION


PROCEDURE

Hide 89747 1.INSTALL WIRELESS DOOR LOCK BUZZER

a.
B540304

Connect the connector.


b.

Attach the clamp and install a new wireless door lock buzzer.

NOTICE:
·

Do not subject the wireless door lock buzzer to strong impacts or force, and do not drop it.

·

Do not reuse the wireless door lock buzzer that has been dropped.




Hide 53876A 3.INSTALL FRONT FENDER LINER LH (for Type A)

a.
B540301

Temporarily install the front fender liner LH.


b.

Attach the claw to install the front fender liner LH and 2 grommets.


c.

Install the 15 clips and 6 screws.

B540300C01
0,0 0,0 false
V100135

Clip
V100136

Screw



d.

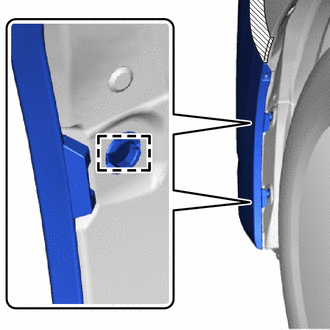

B545294

Attach the guide and install the front fender liner LH.


Hide 53876A 4.INSTALL FRONT FENDER LINER LH (for Type B)

a.
B540301

Temporarily install the front fender liner LH.


b.

Attach the claw to install the front fender liner LH and 2 grommets.


c.

Install the 11 clips and 5 screws.

B540303C01
0,0 0,0 false
V100135

Clip
V100136

Screw



d.
B545294

Attach the guide and install the front fender liner LH.


Hide 53852B 7.INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

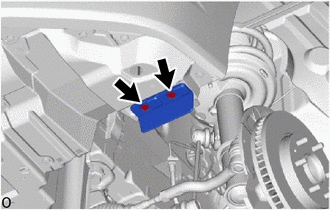

a.
B540169

Install the front wheel opening extension pad LH with the 2 screws.
