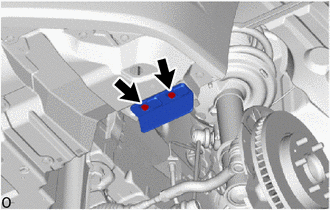

DOOR LOCK  WIRELESS DOOR LOCK BUZZER(for LHD)  REMOVAL

Remove the 2 screws and front wheel opening extension pad LH.

0,0 0,0 false

Protective Tape

Put protective tape as shown in the illustration.

0,0 0,0 false

	Insert Screwdriver Here
	Remove in this Direction
	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove part of the front bumper assembly as shown in the illustration.

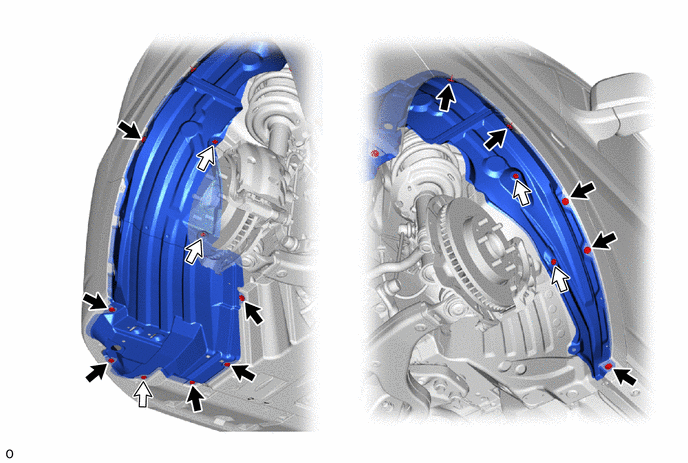

Remove the 15 clips and 6 screws.

0,0 0,0 false

Clip

Screw

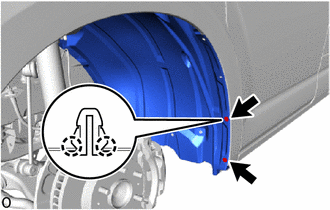

Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the 2 grommets.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

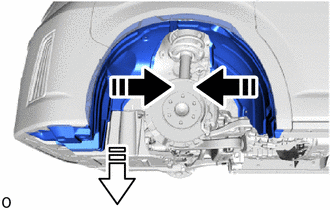

Bend the front fender liner LH inward, slide the duct to the lower side of the vehicle and remove the front fender liner LH as shown in the illustration.

0,0 0,0 false

Protective Tape

Put protective tape as shown in the illustration.

0,0 0,0 false

	Insert Screwdriver Here
	Remove in this Direction
	Protective Tape

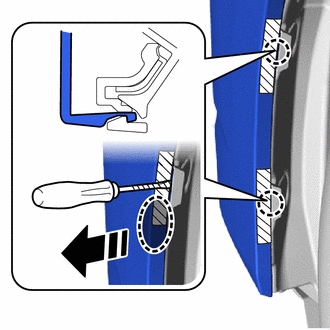

Using a thin-bladed screwdriver, detach the claw in the direction indicated by the arrow shown in the illustration.

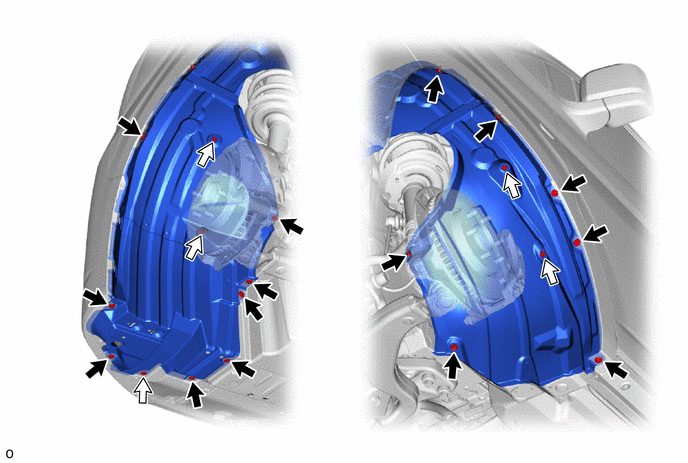

Remove the 11 clips and 5 screws.

0,0 0,0 false

Clip

Screw

Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the 2 grommets.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Bend the front fender liner LH inward, slide the duct to the lower side of the vehicle and remove the front fender liner LH as shown in the illustration.

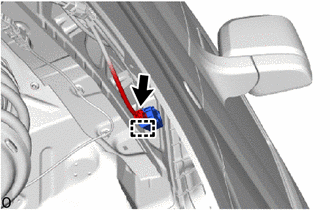

Using a clip remover, detach the clamp.
