EXTERIOR PANELS / TRIM  MUDGUARD(for Rear Side)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 76626D 1.INSTALL REAR QUARTER PANEL MUDGUARD LH

a.

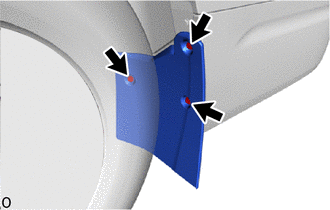

B524278

Install the rear quarter panel mudguard LH with the 3 screws.
