RM35X0E _V1 General _078672 MAINTENANCE _0387902 7GR-FKS DRIVE BELT A

MAINTENANCE  7GR-FKS DRIVE BELT  INSTALLATION


PROCEDURE

Hide 16361A 1.INSTALL FAN AND GENERATOR V BELT

a.

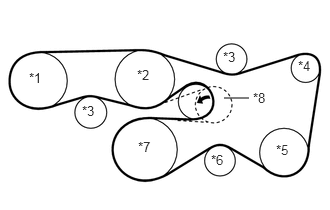

A225650C04
2.594,1.021 2.333,1.021 false 0.302,0.729 0.49,0.917 0.188,0.188 10 false *1 1.427,0.698 1.615,0.885 0.188,0.188 10 false *2 0.854,1.073 1.042,1.26 0.188,0.188 10 false *3 2.323,0.51 2.51,0.698 0.188,0.188 10 false *3 3.104,0.604 3.292,0.792 0.188,0.188 10 false *4 2.875,1.479 3.063,1.667 0.188,0.188 10 false *5 2.198,1.583 2.385,1.771 0.188,0.188 10 false *6 1.438,1.448 1.625,1.635 0.188,0.188 10 false *7 2.635,0.938 2.823,1.125 0.188,0.188 10 false *8
*1 Vane Pump Assembly
*2 Engine Water Pump Assembly
*3 No. 2 Idler Pulley Sub-assembly
*4 Generator Assembly
*5 Compressor Assembly with Magnet Clutch
*6 No. 1 Idler Pulley Sub-assembly
*7 Crankshaft Pulley
*8 V-ribbed Belt Tensioner Assembly


Set the fan and generator V belt onto every part.


b.

While turning the V-ribbed belt tensioner counterclockwise, remove the pin.

NOTICE:

Make sure that the fan and generator V belt is properly installed to each pulley.



c.

Check that the belt fits properly in the ribbed grooves.

HINT:

Make sure to check by hand that the belt has not slipped out of the grooves on the bottom of the pulley.



Hide 51405A 2.INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

a.
A443702C01
0,0 0,0 false
V100135

Bolt A
V100136

Bolt B


w/ No. 2 Engine Under Cover Sub-assembly:

i.

Install the No. 1 engine under cover sub-assembly with the 16 clips and 6 bolts.

Torque:
for bolt A : 5.5 N*m (56 kgf*cm, 49 in.*lbf)
for bolt B : 7.5 N*m (76 kgf*cm, 66 in.*lbf)



b.
A443703C01
0,0 0,0 false
V100135

Bolt A
V100136

Bolt B


w/o No. 2 Engine Under Cover Sub-assembly:

i.

Install the No. 1 engine under cover sub-assembly with the 14 clips and 6 bolts.

Torque:
for bolt A : 5.5 N*m (56 kgf*cm, 49 in.*lbf)
for bolt B : 7.5 N*m (76 kgf*cm, 66 in.*lbf)
