SEAT BELT FRONT SEAT INNER BELT ASSEMBLY(for Fixed Bench Seat Type) INSPECTION
PROCEDURE
73230
1.INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for LHD)
a.
Check the resistance.
i.
1.49,0.146 1.875,0.406
0.385,0.26
1.531,2.365 1.917,2.625
0.385,0.26
1.563,0.198 1.906,0.427
0.344,0.229
10
false
N25
0.146,0.156 0.458,0.354
0.313,0.198
10
false
*a
1.635,2.406 1.979,2.635
0.344,0.229
10
false
m6

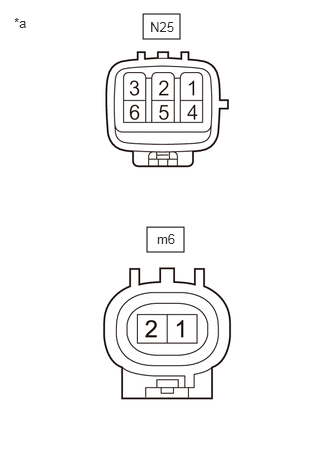

| *a | Component without harness connected
(Front Seat Inner Belt Assembly RH) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition If the result is not as specified, replace the front seat inner belt assembly RH.
N25-6 - m6-2 Always Below 1 Ω N25-4 - m6-1 Seat belt unfastened Below 1 Ω Seat belt fastened 10 kΩ or higher
73240
2.INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for RHD)
a.
Check the resistance.
i.
1.49,0.146 1.875,0.406
0.385,0.26
1.531,2.365 1.917,2.625
0.385,0.26
1.563,0.198 1.906,0.427
0.344,0.229
10
false
N27
0.146,0.156 0.458,0.354
0.313,0.198
10
false
*a
1.635,2.406 1.979,2.635
0.344,0.229
10
false
n6
| *a | Component without harness connected
(Front Seat Inner Belt Assembly LH) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition If the result is not as specified, replace the front seat inner belt assembly LH.
N27-6 - n6-2 Always Below 1 Ω N27-4 - n6-1 Seat belt unfastened Below 1 Ω Seat belt fastened 10 kΩ or higher
