DOOR LOCK  BACK DOOR LOCK(except Wagon)  REMOVAL

69298 1.REMOVE BACK DOOR INSIDE HANDLE COVER (w/ Handle, w/ Cover)

69291 2.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

69783B 3.REMOVE BACK DOOR INSIDE HANDLE BEZEL (w/ Handle, w/o Illumination)

69783B 4.REMOVE BACK DOOR INSIDE HANDLE BEZEL (w/ Handle, w/ Illumination)

67961A 5.REMOVE BACK DOOR PULL STRAP

67751 6.REMOVE BACK DOOR TRIM BOARD

69690 7.REMOVE BACK DOOR REMOTE CONTROL ASSEMBLY

a.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

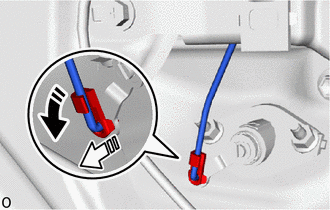

Detach the snap in the direction indicated by the arrow (1) in the illustration.

b.

Disconnect the back door lock open link in the direction indicated by the arrow (2) in the illustration.

c.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the snap in the direction indicated by the arrow (1) in the illustration.

d.

Disconnect the back door cylinder to lock control link in the direction indicated by the arrow (2) in the illustration.

e.

Detach the clamp and disconnect the back door lock cable.

f.

2.052,0.594 2.302,0.823 0.25,0.229 12 true *A

*A	w/ Inside Handle Light

Disconnect the connector.

g.

w/ Inside Handle Light:

i.

Detach the connector clamp.

h.

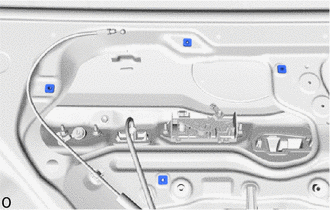

Remove the 4 screws.

i.

Detach the guide and remove the back door remote control assembly.

j.

Remove the 4 grommets.

69350P 8.REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/o Easy Closer)

a.

2.396,2.281 2.813,2.135 true 0.792,1.094 1.219,1.01 true 2.875,2.042 3.083,2.25 0.208,0.208 10 true *a 1.271,0.885 1.479,1.094 0.208,0.208 10 true *b

*a	Wire harness Clamp
*b	Cable Clamp

Disconnect the connector.

b.

Detach the wire harness clamp and cable clamp.

c.

Remove the 3 bolts and back door lock assembly with courtesy light switch.

69350P 9.REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/ Easy Closer)

a.

Disconnect the connector.

b.

Detach the cable clamp.

c.

Remove the 4 bolts and back door lock assembly with courtesy light switch.
