DOOR LOCK  UNLOCK WARNING SWITCH  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure below is for LHD vehicles.



PROCEDURE

Hide 84052 1.INSTALL UNLOCK WARNING SWITCH ASSEMBLY

a.

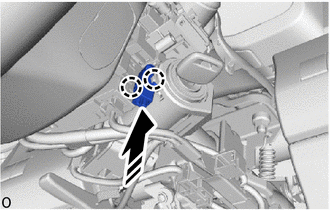

B540137C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the unlock warning switch assembly as shown in the illustration.


b.
B540135

Connect the connector.


c.

Remove the key from the ignition key cylinder.
