RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387533 REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381335,RM100000001FZLG,

Hide Display 72526J 2.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH (w/ Seatback Board)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0002,

Hide Display 72525N 3.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:: Use the same procedure described for the LH side.

Hide Display 71834N 4.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0065,

Hide Display 71833N 5.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0064,

Hide Display 72848J 6.REMOVE NO. 1 SEAT ARMREST CAP (w/ Armrest)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0006,

Hide Display 72830U 7.REMOVE REAR SEAT ARMREST ASSEMBLY RH (w/ Armrest)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0007,

Hide Display 74690A 8.REMOVE REAR SEAT ASSIST GRIP ASSEMBLY (w/ Seatback Board)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0008,

Hide Display 71702D 9.REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH (w/ Seatback Board)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0009,

Hide Display 73375X 10.REMOVE REAR NO. 1 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0053,

Hide Display 73C73D 11.REMOVE REAR NO. 1 SEAT SHOULDER BELT COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73375Y 12.REMOVE REAR NO. 2 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0054,

Hide Display 73C73E 13.REMOVE REAR NO. 2 SEAT SHOULDER BELT COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 14.REMOVE NO. 1 SEATBACK COVER WITH PAD LH (w/ Seatback Board)

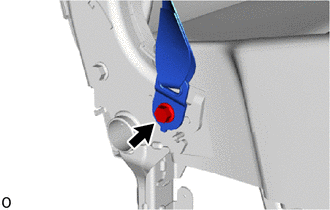

Remove the bolt and anchor of the rear seat outer 3 point type belt assembly LH.

Remove the 2 hog rings.

Pull out the 2 fasteners.

Open the 2 fasteners.

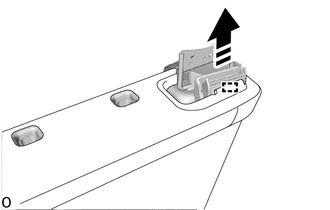

Detach the hook.

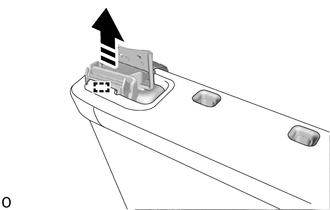

Detach the hook.

0,0 0,0 false

Remove in this Direction

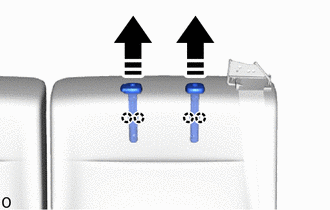

Detach the claw and remove the 2 rear seat headrest supports.

0,0 0,0 false

Remove in this Direction

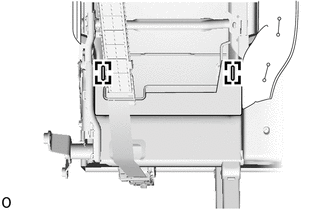

Detach the guide.

Detach the guide.

Pass the rear seat outer 3 point type belt assembly LH through the hole of the No. 1 seatback cover with pad LH.

Remove the No. 1 seatback cover with pad LH.

Hide Display 15.REMOVE NO. 1 SEATBACK COVER WITH PAD RH (w/ Seatback Board)

HINT:: Use the same procedure described for the LH side.

Hide Display 16.REMOVE NO. 1 SEATBACK COVER WITH PAD RH (w/o Seatback Board)

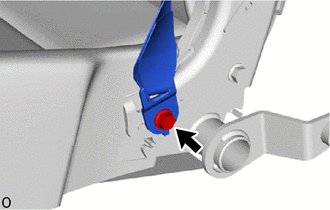

Remove the bolt and anchor of the rear center seat lap type belt assembly.

0,0 0,0 false

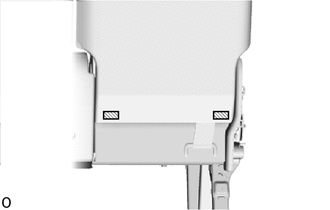

Fastening Tape

Detach the fastening tape.

Remove the 3 hog rings.

w/ Seatback Fastener

Pull out the 2 fasteners.

ii.

Open the 2 fasteners.

0,0 0,0 false

Remove in this Direction

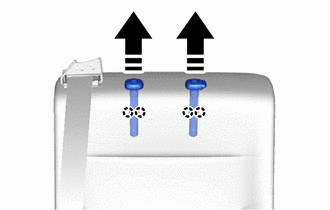

Detach the claw and remove the 2 rear seat headrest supports.

0,0 0,0 false

Remove in this Direction

Detach the guide.

Detach the guide.

Pass the rear center seat lap type belt assembly through the hole of the No. 1 seatback cover with pad RH.

Remove the No. 1 seatback cover with pad RH.

Hide Display 73375Z 17.REMOVE REAR NO. 3 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0017,

Hide Display 73C73F 18.REMOVE REAR NO. 3 SEAT SHOULDER BELT COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73C75A 19.REMOVE REAR SEAT SHOULDER BELT HOLE COVER LH (w/ Seatback Board)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0381335,RM100000001FZLH_01_0018,

Hide Display 73C73H 20.REMOVE REAR SEAT SHOULDER BELT HOLE COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73370 21.REMOVE REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY LH (w/ Seatback Board)

Remove the 2 screws.

Detach the guide and remove the bezel of the rear seat outer 3 point type belt assembly LH.

Remove the bolt.

Detach the guide and remove the rear seat outer 3 point type belt assembly LH.

Hide Display 73350 22.REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

HINT:: Use the same procedure described for the LH side.
