RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387532 REAR SEAT OUTER BELT ASSEMBLY(for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt) A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.INSPECT REAR SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>INSPECTION201902,999999,_58,_078602,_0387532,RM100000001GXUJ,

Hide Display 73360 2.INSTALL REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY RH

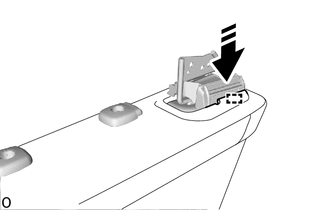

Attach the guide.

Install the retractor of the rear seat outer 3 point type belt assembly RH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Attach the guide.

Install the bezel with the 2 screws.

Hide Display 73C73H 3.INSTALL REAR SEAT SHOULDER BELT HOLE COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0056,

Hide Display 73C73F 4.INSTALL REAR NO. 3 SEAT SHOULDER BELT COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0058,

Hide Display 5.INSTALL SEATBACK COVER WITH PAD

Pass the rear seat outer 3 point type belt assembly RH through the hole of seatback cover with pad.

Attach the guide.

Insert the seatback cover with pad under the rear seat shoulder belt hole cover RH as shown in the illustration.

Attach the hook.

Attach the hook.

Close the 2 fasteners.

Insert the 2 fasteners.

1.667,2.667 1.75,2.167 1.75,2.167 2,2.167 false 2.063,2.042 2.375,2.198 0.313,0.156 10 false *a 1.146,1.24 1.365,1.396 0.219,0.156 10 true (1) 1.76,1.229 1.99,1.396 0.229,0.167 10 true (2)

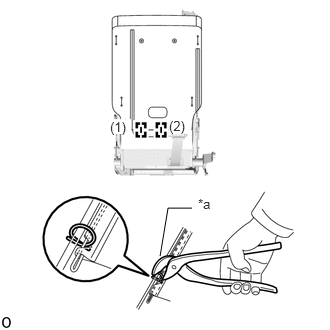

*a	Hog Ring Pliers

Using hog ring pliers, install the seatback cover with pad with the 2 new hog rings in the order indicated in the illustration.

HINT:: Be careful not to damage the seatback cover with pad.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

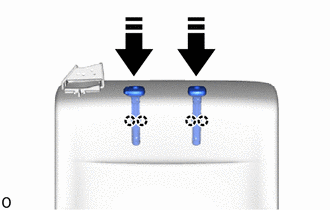

Attach the claw and install the 2 front seat headrest supports as shown in the illustration.

1.573,0.979 2.26,0.813 2.26,0.813 1.969,1.26 true 2.26,0.688 2.438,0.896 0.177,0.208 10 true *a

*a	Protruding Part

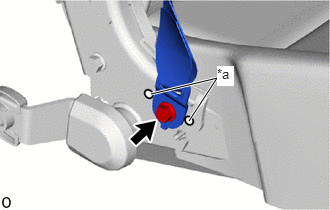

Install the anchor of the rear seat outer 3 point type belt assembly RH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor of the rear seat outer 3 point type belt assembly RH to overlap the protruding part.

Check that the ELR locks.

With the rear seat outer 3 point type belt assembly RH installed to the vehicle, check that the belt locks when it is pulled out quickly.

Hide Display 73C73E 6.INSTALL REAR NO. 2 SEAT SHOULDER BELT COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0066,

Hide Display 73C73D 7.INSTALL REAR NO. 1 SEAT SHOULDER BELT COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0067,

Hide Display 71701A 8.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0024,

Hide Display 74690A 9.INSTALL REAR SEAT ASSIST GRIP ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0025,

Hide Display 72840J 10.INSTALL REAR SEAT ARMREST ASSEMBLY LH (w/ Armrest)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0070,

Hide Display 72848J 11.INSTALL NO. 1 SEAT ARMREST CAP (w/ Armrest)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0071,

Hide Display 71833M 12.INSTALL RH SEAT REAR NO. 2 SEAT RECLINING COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0082,

Hide Display 71834M 13.INSTALL RH SEAT REAR NO. 2 SEAT RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0081,

Hide Display 72525R 14.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REASSEMBLY201902,999999,_58,_078601,_0381334,RM100000001FZLD_02_0076,

Hide Display 15.INSTALL REAR SEAT ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0381334,RM100000001FZLE,
