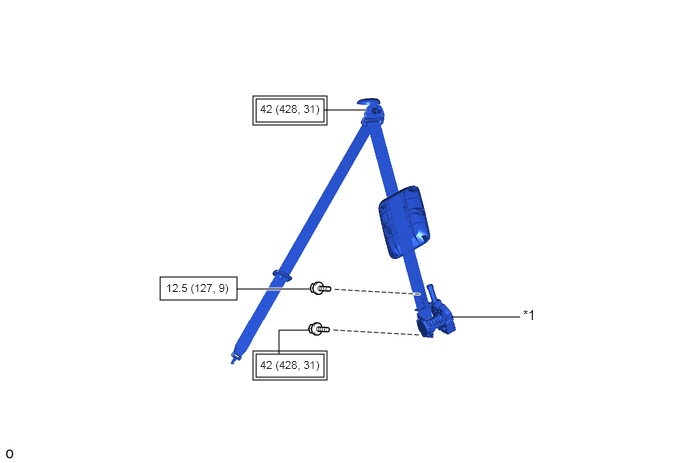

SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Van)  COMPONENTS

ILLUSTRATION

2.667,1.031 3.375,1.271 0.708,0.24 2.635,1 3.406,1.302 0.771,0.302 1.667,2.885 2.469,3.125 0.802,0.24 2.667,3.688 3.375,3.927 0.708,0.24 2.635,3.656 3.406,3.958 0.771,0.302 4.708,3.302 5.417,3.302 false 3.375,1.146 3.813,1.146 true 2.469,3.01 3.229,3.01 true 2.906,3.688 2.906,3.438 2.906,3.438 3.229,3.438 false 5.448,3.198 5.76,3.354 0.313,0.156 10 false *1 2.708,1.063 3.406,1.25 0.698,0.188 8 false 42 (428, 31) 1.729,2.927 2.448,3.125 0.719,0.198 8 false 12.5 (127, 9) 2.708,3.729 3.406,3.917 0.698,0.188 8 false 42 (428, 31)

*1	REAR SEAT OUTER BELT ASSEMBLY LH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
