RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0387489 BACK DOOR CLOSER ECU(except Wagon) A

DOOR / HATCH BACK DOOR CLOSER ECU(except Wagon) REMOVAL

PROCEDURE

Hide Display 69298 1.REMOVE BACK DOOR INSIDE HANDLE COVER (w/ Handle, w/ Cover)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (except Wagon)>DISASSEMBLY201902,201906,_59,_078503,_0385654,RM100000001GNFR_01_0057,201906,999999,_59,_078503,_0385654,RM0000003TPB4CY_01_0057,

Hide Display 69291 2.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (except Wagon)>DISASSEMBLY201902,201906,_59,_078503,_0385654,RM100000001GNFR_01_0058,201906,999999,_59,_078503,_0385654,RM0000003TPB4CY_01_0058,

Hide Display 69783B 3.REMOVE BACK DOOR INSIDE HANDLE BEZEL (w/ Handle, w/o illumination)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (except Wagon)>DISASSEMBLY201902,201906,_59,_078503,_0385654,RM100000001GNFR_01_0059,201906,999999,_59,_078503,_0385654,RM0000003TPB4CY_01_0059,

Hide Display 69783B 4.REMOVE BACK DOOR INSIDE HANDLE BEZEL (w/ Handle, w/ illumination)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (except Wagon)>DISASSEMBLY201902,201906,_59,_078503,_0385654,RM100000001GNFR_01_0010,201906,999999,_59,_078503,_0385654,RM0000003TPB4CY_01_0010,

Hide Display 67961A 5.REMOVE BACK DOOR PULL STRAP

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (except Wagon)>DISASSEMBLY201902,201906,_59,_078503,_0385654,RM100000001GNFR_01_0060,201906,999999,_59,_078503,_0385654,RM0000003TPB4CY_01_0060,

Hide Display 67751 6.REMOVE BACK DOOR TRIM BOARD

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (except Wagon)>DISASSEMBLY201902,201906,_59,_078503,_0385654,RM100000001GNFR_01_0021,201906,999999,_59,_078503,_0385654,RM0000003TPB4CY_01_0021,

Hide Display 85976 7.REMOVE BACK DOOR CLOSER RELAY

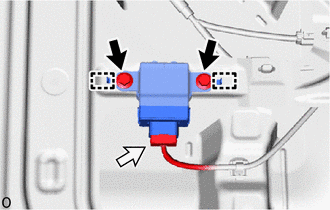

a.

B538420C02

0,0 0,0 false

	Bolt
	Connector

Remove the 2 bolts.

b.

Detach the guide and remove the back door closer relay.

c.

Disconnect the connector.
