DOOR / HATCH POWER SLIDE DOOR WARNING BUZZER INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the RH side.

PROCEDURE

Hide Display 89747 1.INSTALL WIRELESS DOOR LOCK BUZZER

a.

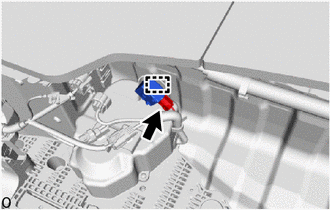

B539696

Connect the connector.

b.

Attach the clamp and install the wireless door lock buzzer.

Hide Display 51078D 2.INSTALL SIDE STEP BRACKET SUB-ASSEMBLY RH (for Standard Roof)
