DOOR / HATCH  POWER SLIDE DOOR TOUCH SENSOR(except Wagon)  INSTALLATION

84250B 1.INSTALL POWER SLIDE DOOR SENSOR ASSEMBLY RH (for High Roof)

a.

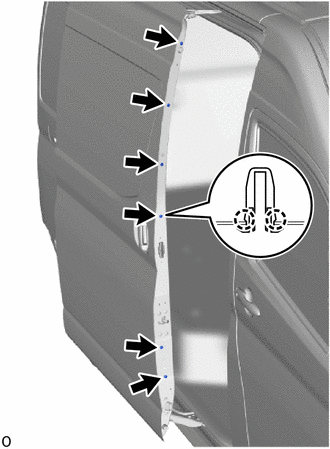

Attach the claw and install the 6 screw grommets.

b.

0,0 0,0 false

Install in this Direction

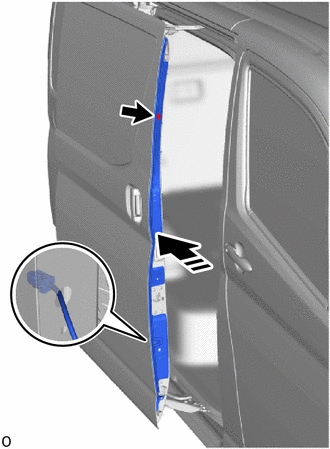

Insert the power slide door sensor assembly RH connector to the service hole on the slide door panel.

c.

Temporarily install the power slide door sensor assembly RH with the temporary screw.

d.

1.021,2.615 1.229,2.813 0.208,0.198 10 true (1) 1.031,3.063 1.25,3.271 0.219,0.208 10 true (2)

	Screw
	Bolt

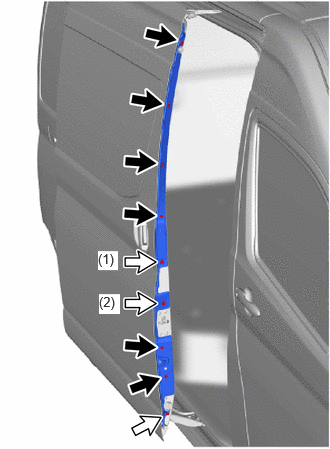

Install the 3 bolts in the order shown in the illustration.

Torque:

7.5 N*m (76 kgf*cm, 66 in.*lbf)

e.

Install the 6 screws.

f.

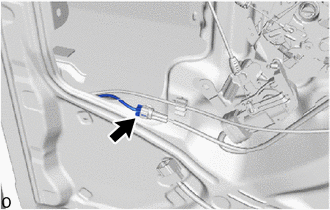

Connect the connector.

84250B 2.INSTALL POWER SLIDE DOOR SENSOR ASSEMBLY RH (for Standard Body)

a.

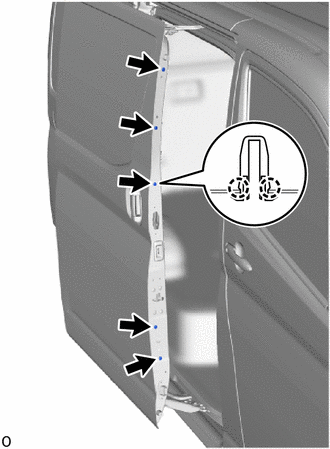

Attach the claw and install the 5 screw grommets.

b.

0,0 0,0 false

Install in this Direction

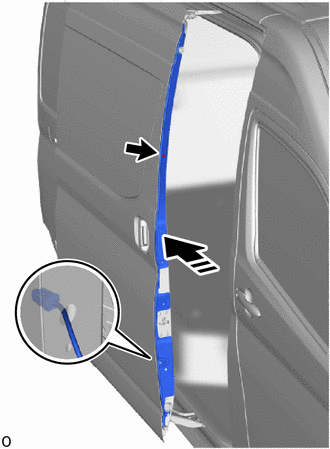

Insert the power slide door sensor assembly RH connector to the service hole on the slide door panel.

c.

Temporarily install the power slide door sensor assembly RH with the temporary screw.

d.

0.927,2.333 1.156,2.531 0.229,0.198 10 true (1) 0.948,2.823 1.177,3.021 0.229,0.198 10 true (2)

	Screw
	Bolt

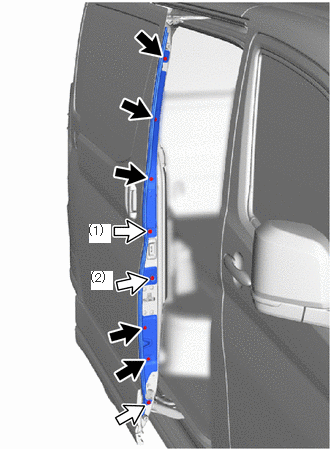

Install the 3 bolts in the order shown in the illustration.

Torque:

7.5 N*m (76 kgf*cm, 66 in.*lbf)

e.

Install the 5 screws.

f.

Connect the connector.

67851E 3.INSTALL SLIDE DOOR SERVICE HOLE COVER RH

67680B 4.INSTALL SLIDE DOOR TRIM BOARD ASSEMBLY RH (for Full-trim, for High Roof)

67680B 5.INSTALL SLIDE DOOR TRIM BOARD ASSEMBLY RH (for Full-trim, for Standard Roof)

67603 6.INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY RH (for Semi-trim)

67667A 7.INSTALL SLIDE DOOR WINDOW GARNISH RH (for Full-trim, for High Roof)

67667A 8.INSTALL SLIDE DOOR WINDOW GARNISH RH (for Full-trim, for Standard Roof)
