RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0387484 POWER SLIDE DOOR CONTROL SWITCH A

DOOR / HATCH POWER SLIDE DOOR CONTROL SWITCH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure below is for LHD vehicles.

PROCEDURE

Hide Display 84963A 1.INSTALL NO. 2 POWER SLIDE DOOR CONTROL SWITCH

a.

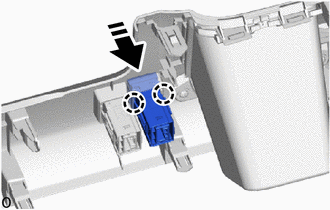

B539676C01

0,0 0,0 false

V113147

Install in this Direction

Attach the claw and install the No. 2 power slide door control switch as shown in the illustration.

Hide Display 84963 2.INSTALL NO. 1 POWER SLIDE DOOR CONTROL SWITCH

HINT:: Use the same procedure described for the No. 2 power slide door control switch.

Hide Display 55011A 3.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0042,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0042,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0042,

Hide Display 55631A 4.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0077,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0077,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0077,
