RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0387483 POWER SLIDE DOOR MAIN SWITCH A

DOOR / HATCH POWER SLIDE DOOR MAIN SWITCH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure below is for LHD vehicles.

PROCEDURE

Hide Display 84962 1.INSTALL POWER SLIDE DOOR MAIN SWITCH

a.

B539671C01

0,0 0,0 false

V113147

Install in this Direction

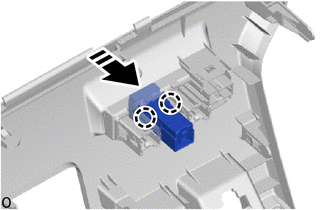

Attach the claw and install the power slide door main switch as shown in the illustration.

Hide Display 55432D 2.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0035,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0035,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0035,

Hide Display 77306 3.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0036,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0036,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0036,

Hide Display 53601 4.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0037,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0037,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0037,

Hide Display 55641 5.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0038,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0038,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0038,

Hide Display 55011A 6.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0042,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0042,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0042,

Hide Display 55631A 7.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0077,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0077,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0077,

Hide Display 62112 8.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0045,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0045,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0045,

Hide Display 67914B 9.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0049,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0049,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0049,

Hide Display 67912A 10.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0050,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0050,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0050,
