BRAKE (FRONT)  FRONT BRAKE  DISASSEMBLY

0.75,1.938 1.083,1.938 true 2.667,1.885 2.917,1.885 true 0.531,1.854 0.74,2.031 0.208,0.177 10 false *a 2.979,1.792 3.188,1.99 0.208,0.198 10 false *b

*a	Cloth
*b	Wooden Block

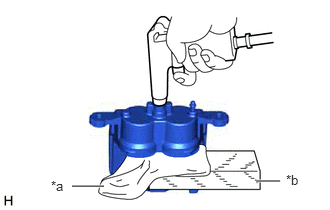

Place a piece of cloth and a wooden block between the front disc brake piston and front disc brake cylinder.

HINT:

Make sure to place the wooden block between the front disc brake piston which is not to be removed and the front disc brake cylinder.

Apply compressed air to remove the front disc brake piston from the front disc brake cylinder.

CAUTION:

·

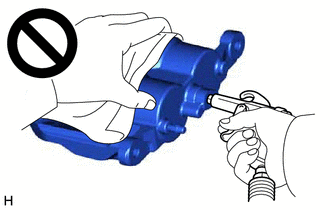

Do not hold the front disc brake cylinder with any part of your hand between the front disc brake cylinder and front disc brake piston.

·

Do not place any part of your hand in front of the front disc brake piston when using compressed air as a severe injury may result.

NOTICE:

Do not allow any brake fluid to spatter.

2.188,1.094 2.552,1.76 2.552,1.76 2.667,1.76 true 2.76,1.667 3.073,1.823 0.313,0.156 10 false *a

*a	Protective Tape

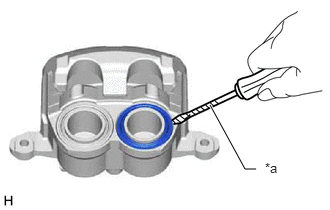

Using a screwdriver with its tip wrapped with protective tape, remove the cylinder boot from the front disc brake cylinder.

NOTICE:

Be careful not to damage the front disc brake cylinder.

2.021,1.073 2.167,0.333 2.167,0.333 2.25,0.333 true 2.302,0.24 2.5,0.438 0.198,0.198 10 false *a

*a	Protective Tape

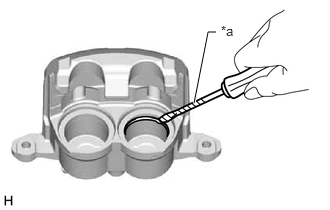

Using a screwdriver with its tip wrapped with protective tape, remove the piston seal from the front disc brake cylinder.

NOTICE:

Do not damage the inner surface or piston seal groove of the front disc brake cylinder.
