Vehicle Exterior
_079319
MIRROR (EXT)
_0387101
OUTER UNDER REAR VIEW MIRROR
A
MIRROR (EXT) OUTER UNDER REAR VIEW MIRROR INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the for Type A and for Type B.
·The procedure listed below is for Type A.
PROCEDURE
87950
1.INSTALL OUTER UNDER REAR VIEW MIRROR ASSEMBLY
a.
0.865,3.104 0.365,2.531
true
2.135,0.865 2.448,1.073
0.313,0.208
10
true
(1)
2.146,0.594 2.458,0.802
0.313,0.208
10
true
(4)
2.042,0.323 2.354,0.531
0.313,0.208
10
true
(2)
2.125,1.135 2.438,1.344
0.313,0.208
10
true
(3)
0.865,3.135 1.177,3.333
0.313,0.198
10
true
*a
| *a | Standard Hole |

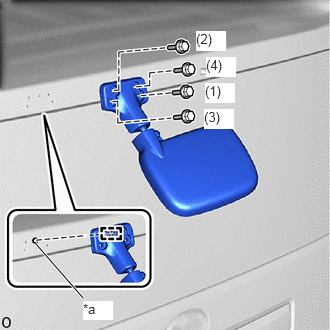

Attach the guide of the outer under rear view mirror assembly to the standard hole of the back door panel and install the outer under rear view mirror assembly as shown in the illustration.
b.
Install the 4 bolts in the order shown in the illustration.
- Torque:
- 9.3 N*m (95 kgf*cm, 82 in.*lbf)
