RM35X0E _59 Vehicle Exterior _079319 MIRROR (EXT) _0387101 OUTER UNDER REAR VIEW MIRROR A

MIRROR (EXT)  OUTER UNDER REAR VIEW MIRROR  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the for Type A and for Type B.

·

The procedure listed below is for Type A.



PROCEDURE

Hide 87950 1.REMOVE OUTER UNDER REAR VIEW MIRROR ASSEMBLY

a.

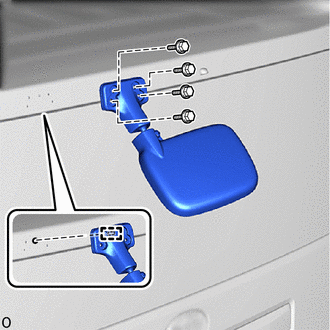

B539309

Remove the 4 bolts.


b.

Detach the guide and remove the outer under rear view mirror assembly.
