RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0385302 FRONT WIPER MOTOR G

WIPER / WASHER  FRONT WIPER MOTOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 85110 1.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY (for LHD)

a.

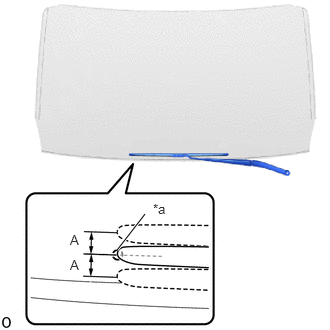

B538614C01
1.51,2.229 1.219,2.604 true 1.594,2.094 1.823,2.302 0.229,0.208 10 false *a 0.729,2.417 0.917,2.635 0.188,0.219 10 false A 0.729,2.677 0.896,2.854 0.167,0.177 10 false A
*a Ceramic Notch


for LH Side:

i.

Operate the windshield wiper motor assembly.


ii.

Stop the windshield wiper motor assembly operation.


iii.

Check the automatic stop (park) position.

Standard Clearance:
Area Measurement
A 7.5 mm (0.295 in.)


HINT:

After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.


OK:

The windshield wiper motor assembly stops at the position shown in the illustration.




b.

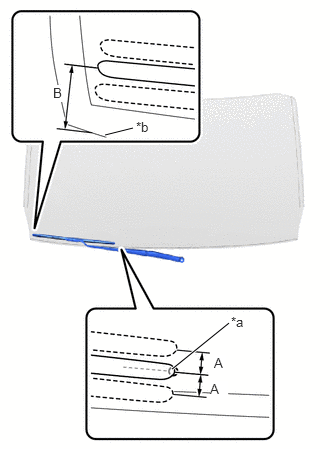

B538613C01
1.792,3.844 2.385,3.365 true 1.094,1.406 1.385,1.333 true 0.552,0.885 0.698,1.063 0.146,0.177 10 true B 2.406,3.271 2.667,3.49 0.26,0.219 10 false *a 2.229,3.698 2.354,3.854 0.125,0.156 10 true A 2.188,3.969 2.375,4.156 0.188,0.188 10 true A 1.417,1.24 1.677,1.458 0.26,0.219 10 false *b
*a Ceramic Notch
*b Windshield Glass Edge


for RH Side:

i.

Operate the windshield wiper motor assembly.


ii.

Stop the windshield wiper motor assembly operation.


iii.

Check the automatic stop (park) position.

Standard Clearance:
Area Measurement
A 7.5 mm (0.295 in.)
B 28 mm (1.102 in.)


HINT:

After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.


OK:

The windshield wiper motor assembly stops at the position shown in the illustration.




Hide 85110 2.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY (for RHD)

a.

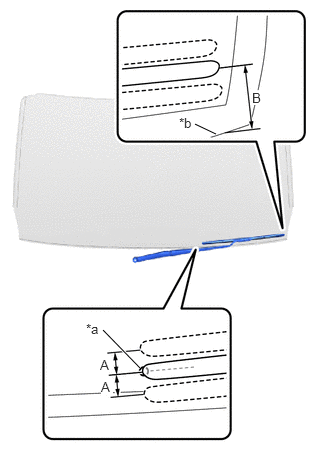

B540735C01
2.25,1.396 2.031,1.292 true 1.458,3.833 1.073,3.438 true 1.865,1.198 2.177,1.354 0.313,0.156 10 false *b 2.625,0.938 2.781,1.094 0.156,0.156 10 true B 0.896,3.344 1.208,3.5 0.313,0.156 10 false *a 1.042,3.719 1.167,3.875 0.125,0.156 10 true A 1.052,3.948 1.177,4.104 0.125,0.156 10 true A
*a Ceramic Notch


for LH Side:

i.

Operate the windshield wiper motor assembly.


ii.

Stop the windshield wiper motor assembly operation.


iii.

Check the automatic stop (park) position.

Standard Clearance:
Area Measurement
A 7.5 mm (0.295 in.)
B 28 mm (1.102 in.)


HINT:

After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.


OK:

The windshield wiper motor assembly stops at the position shown in the illustration.




b.

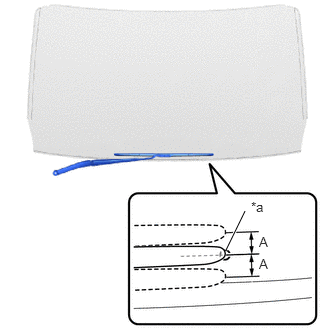

B540734C01
2.552,2.198 2.354,2.604 true 2.615,2.073 2.927,2.229 0.313,0.156 10 false *a 2.698,2.438 2.865,2.615 0.167,0.177 10 false A 2.698,2.667 2.865,2.844 0.167,0.177 10 false A
*a Ceramic Notch


for RH Side:

i.

Operate the windshield wiper motor assembly.


ii.

Stop the windshield wiper motor assembly operation.


iii.

Check the automatic stop (park) position.

Standard Clearance:
Area Measurement
A 7.5 mm (0.295 in.)


HINT:

After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.


OK:

The windshield wiper motor assembly stops at the position shown in the illustration.
