POWER OUTLETS (INT)  RELAY  INSPECTION

2,0.802 2.313,0.802 true 2.792,1.135 3.115,1.135 true 2.781,1.573 3.104,1.573 true 2.875,0.802 3.188,0.802 true 0.354,1.167 0.531,1.333 0.177,0.167 10 false 1 1.521,1.156 1.698,1.323 0.177,0.167 10 false 2 0.365,0.76 0.542,0.927 0.177,0.167 10 false 3 1.531,0.781 1.708,0.948 0.177,0.167 10 false 5 1.896,0.75 2.073,0.917 0.177,0.167 10 false 1 3.25,0.729 3.427,0.896 0.177,0.167 10 false 2 3.167,1.5 3.344,1.667 0.177,0.167 10 false 3 3.156,1.063 3.333,1.229 0.177,0.167 10 false 5

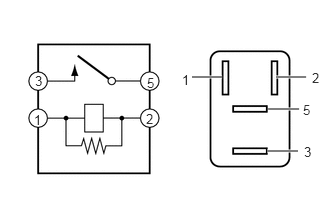

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 5	Battery voltage not applied between terminals 1 and 2	10 kΩ or higher
	Battery voltage applied between terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the ACC relay.
