RM35X0E _V1 General _078672 MAINTENANCE _0386718 FRONT DISC BRAKE PAD A

MAINTENANCE  FRONT DISC BRAKE PAD  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 2.REMOVE FRONT DISC BRAKE PAD

CAUTION:
·

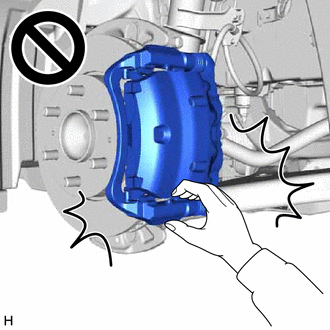

Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads.

·
C412346

After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.

·

The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.



a.

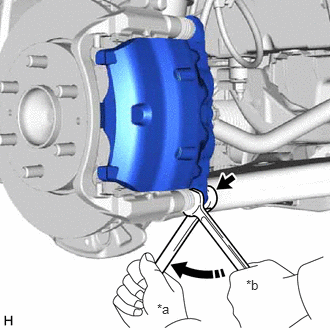

C412347C01
1.635,3.135 1.854,3.354 0.219,0.219 10 false *a 2.563,2.885 2.875,3.042 0.313,0.156 10 false *b
*a Turn
*b Hold


Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.

NOTICE:

Do not kink or damage the brake line.



b.

Pull the front disc brake cylinder assembly upward.


c.

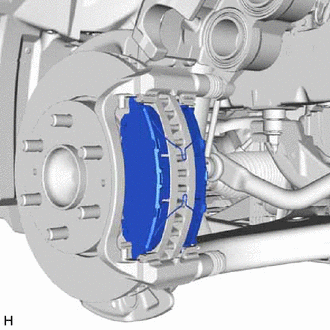

C412348

Remove the 2 front disc brake pads and 2 anti-squeal springs from the front disc brake cylinder mounting.


Hide 04945 3.REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

a.

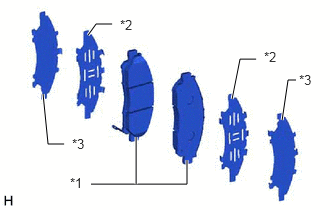

C412388C01
1.167,0.25 1,0.25 1,0.25 0.917,0.365 true 2.667,0.615 2.5,0.615 2.5,0.615 2.417,1.031 true 3.083,0.833 3,0.833 3,0.833 2.938,1.25 true 0.667,1.5 0.5,1.5 0.5,1.5 0.448,0.979 true 0.948,1.917 1.948,1.917 1.948,1.917 1.948,1.667 true 1.417,1.917 1.417,1.427 true 2.75,0.51 3.063,0.667 0.313,0.156 10 false *2 1.25,0.177 1.5,0.333 0.25,0.156 10 false *2 0.75,1.417 1,1.583 0.25,0.167 10 false *3 3.115,0.75 3.333,0.906 0.219,0.156 10 false *3 0.729,1.823 0.927,2.063 0.198,0.24 10 false *1
*1 Front Disc Brake Pad
*2 Front No. 1 Disc Brake Anti-squeal Shim
*3 Front No. 2 Disc Brake Anti-squeal Shim


Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.
