RM35X0E _56 Audio / Visual / Telematics _079315 PARK ASSIST / MONITORING _0385737 REAR VIEW MONITOR SYSTEM(for Inner Rear View Mirror Type) J

PARK ASSIST / MONITORING  REAR VIEW MONITOR SYSTEM(for Inner Rear View Mirror Type)  Inner Rear View Mirror Power Source Circuit


DESCRIPTION

This circuit detects the state of the ignition switch, and sends it to the inner rear view mirror assembly.

WIRING DIAGRAM

E410133E01
0.198,0.792 1.479,0.99 1.281,0.198 10 false from IG1 NO.1 Relay 2.99,0.969 4.521,1.188 1.531,0.219 10 false ECU-IG1 NO.3 5.542,0.656 5.708,0.885 0.167,0.229 10 false 6 5.042,2.313 7.146,2.469 2.104,0.156 10 false Inner Rear View Mirror Assembly 5.823,1.51 5.979,1.667 0.156,0.156 10 false E 5.823,0.771 6.083,0.927 0.26,0.156 10 false IG 5.042,2.156 5.417,2.313 0.375,0.156 10 false a7 5.531,1.365 5.979,1.552 0.448,0.188 10 false 3

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (INNER REAR VIEW MIRROR ASSEMBLY - BATTERY AND BODY GROUND)
a.
E410105C04
1.542,0.271 1.896,0.479 0.354,0.208 2.115,1.146 2.344,1.927 2.344,1.927 2.5,1.927 true 1.042,2.021 1.156,2.021 1.156,2.021 1.583,1.167 true 0.896,1.948 1.208,2.146 0.313,0.198 10 false E 2.604,1.844 2.917,2.042 0.313,0.198 10 false IG 1.583,0.292 1.917,0.49 0.333,0.198 10 false a7 0.188,0.156 0.5,0.354 0.313,0.198 10 false *a

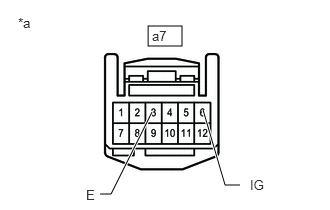

*a Front view of wire harness connector
(to Inner Rear View Mirror Assembly)


Disconnect the inner rear view mirror assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
a7-6 (IG) - a7-3 (E) Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
a7-3 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>REAR VIEW MONITOR SYSTEM (for Inner Rear View Mirror Type)>PROBLEM SYMPTOMS TABLE


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
