RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0385760 REAR WHEEL HOUSE PLATE A

EXTERIOR PANELS / TRIM  REAR WHEEL HOUSE PLATE  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 65632D 1.INSTALL REAR FRONT WHEEL HOUSE PLATE LH

a.

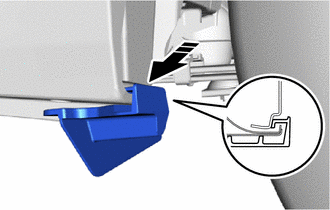

B524433C01
0,0 0,0 false
V113147

Install in this Direction


Install the rear front wheel house plate LH as shown in the illustration.


b.
B524273

Install the 2 screws.
