EXTERIOR PANELS / TRIM  FRONT DOOR WINDOW FRAME MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 75752C 1.INSTALL FRONT DOOR FRONT WINDOW FRAME MOULDING LH

a.
B525672C01
0,0 0,0 false
V113147

Install in this Direction

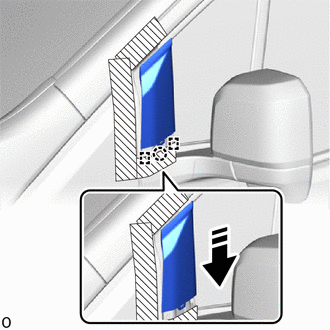

Attach the claw and guide to install a new front door front window frame moulding LH as shown in the illustration.


b.

Remove the peeling paper of a new front door front window frame moulding LH trying not to touch the adhesional surface.


c.
B525673C01
1.521,1.208 1.938,1.208 true 2,1.125 2.208,1.313 0.208,0.188 10 true *a

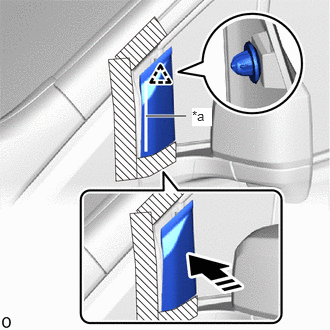

*a Double-sided Tape
V113147

Install in this Direction


Attach the double-sided tape and clip as shown in the illustration.

HINT:

Press the front door window frame moulding LH firmly to install it.



d.

Remove the protective tape.
