EXTERIOR PANELS / TRIM  FRONT DOOR WINDOW FRAME MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 75752C 1.REMOVE FRONT DOOR FRONT WINDOW FRAME MOULDING LH

a.
B525669C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front door front window frame moulding LH.


b.

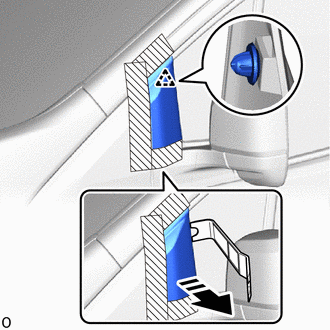

B525670C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover B, detach the clip.


c.

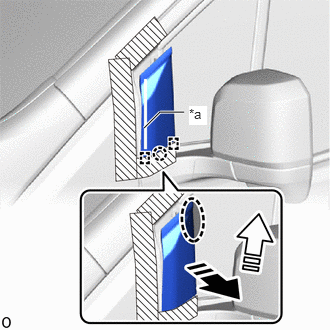

B525671C01
1.5,1.333 1.667,1.167 1.667,1.167 1.917,1.167 true 1.969,1.104 2.156,1.302 0.188,0.198 10 true *a
*a Double-sided Tape
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Placing your hand in the gap, pull the front door front window frame moulding LH to detach the double-sided tape as shown in the illustration.


d.

Pull up, detach the claw and guide and remove the front door front window frame moulding LH.

NOTICE:

The front door front window frame moulding LH must not be reused.
