RM35X0E _56 Audio / Visual / Telematics _079315 PARK ASSIST / MONITORING _0385740 CLEARANCE WARNING BUZZER(for LHD) A

PARK ASSIST / MONITORING CLEARANCE WARNING BUZZER(for LHD) INSTALLATION

PROCEDURE

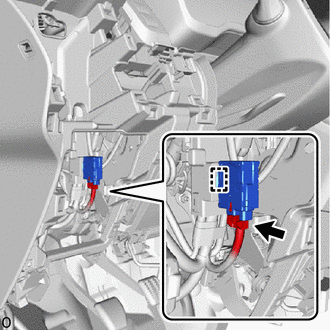

Hide Display 89343C 1.INSTALL NO. 1 CLEARANCE WARNING BUZZER

a.

B525703

Connect the connector.

b.

Attach the clamp to install the No. 1 clearance warning buzzer.

Hide Display 55432D 2.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0035,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0035,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0035,

Hide Display 77306 3.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0036,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0036,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0036,

Hide Display 53601 4.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0037,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0037,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0037,

Hide Display 55641 5.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0038,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0038,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0038,

Hide Display 55011A 6.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0042,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0042,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0042,

Hide Display 55631A 7.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0077,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0077,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0077,

Hide Display 62112 8.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0045,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0045,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0045,

Hide Display 67914B 9.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0049,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0049,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0049,

Hide Display 67912A 10.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0050,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0050,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0050,
