PARK ASSIST / MONITORING PARKING ASSIST MONITOR SYSTEM Reverse Signal Circuit

DESCRIPTION

The radio and display receiver assembly receives a reverse signal from the back-up light switch assembly.

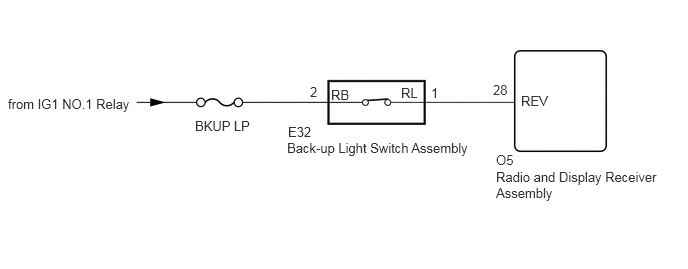

WIRING DIAGRAM

0.083,1 1.594,1.375 1.51,0.375 10 false from IG1 NO.1 Relay 2.031,1.229 2.823,1.531 0.792,0.302 10 false BKUP LP 3.229,0.875 3.417,1.063 0.188,0.188 10 false 2 4.49,0.885 4.677,1.073 0.188,0.188 10 false 1 3,1.292 3.354,1.479 0.354,0.188 10 false E32 2.99,1.458 5,1.708 2.01,0.25 10 false Back-up Light Switch Assembly 5.135,0.854 5.344,1.063 0.208,0.208 10 false 28 5.427,0.969 5.833,1.177 0.406,0.208 10 false REV 5.167,1.583 5.573,1.792 0.406,0.208 10 false O5 5.167,1.76 6.875,2.104 1.708,0.344 10 false Radio and Display Receiver Assembly 3.448,0.906 3.854,1.115 0.406,0.208 10 false RB 4.177,0.885 4.583,1.094 0.406,0.208 10 false RL

CAUTION / NOTICE / HINT

NOTICE:: ·

If the cable was disconnected from and reconnected to the negative (-) battery terminal, the estimated course lines may not be displayed on the image of the area behind the vehicle. In this case, perform "Correct the Steering Angle Neutral Point".

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST MONITOR SYSTEM>INITIALIZATION201902,999999,_56,_079315,_0385736,RM100000001GNRA,

·

Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST MONITOR SYSTEM>CALIBRATION201902,999999,_56,_079315,_0385736,RM100000001GNRB,

·

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.INSPECT BACK-UP LIGHT SWITCH ASSEMBLY

Remove the back-up light switch assembly.

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>BACK-UP LIGHT SWITCH>REMOVAL201902,999999,_52,_078740,_0382071,RM100000001G3MC,

Inspect the back-up light switch assembly.

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>BACK-UP LIGHT SWITCH>INSPECTION201902,999999,_52,_078740,_0382071,RM100000001G3MD,

Result:

Proceed to
OK
NG

2.CHECK HARNESS AND CONNECTOR (REVERSE SIGNAL)

REPLACE BACK-UP LIGHT SWITCH ASSEMBLY

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>BACK-UP LIGHT SWITCH>REMOVAL201902,999999,_52,_078740,_0382071,RM100000001G3MC,

2.CHECK HARNESS AND CONNECTOR (REVERSE SIGNAL)

1.469,0.521 1.896,0.781 0.427,0.26 2.01,2.615 2.219,2.615 2.219,2.615 2.594,2.083 true 0.146,0.094 0.5,0.313 0.354,0.219 10 false *a 1.677,2.542 2.063,2.74 0.385,0.198 10 false REV 1.552,0.563 1.938,0.76 0.385,0.198 10 false O5

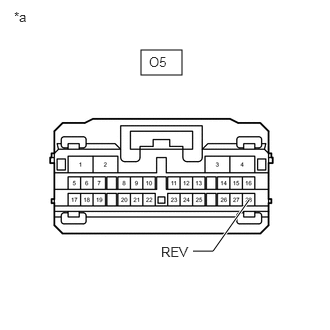

*a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

Disconnect the radio and display receiver assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
O5-28 (REV) - Body ground	Ignition switch ON Shift position in R	11 to 14 V
O5-28 (REV) - Body ground	Ignition switch ON Shift position not in R	Below 1 V

Result:

Proceed to
OK
NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST MONITOR SYSTEM>PROBLEM SYMPTOMS TABLE201902,201906,_56,_079315,_0385736,RM100000001GNRC,201906,202107,_56,_079315,_0385736,RM100000001J4WU,202107,999999,_56,_079315,_0385736,RM100000001XNJS,

REPAIR OR REPLACE HARNESS OR CONNECTOR
