7GR-FKS INTAKE / EXHAUST  INTAKE AIR CONTROL VALVE ACTUATOR  INSPECTION

0.276,0.162 0.450,0.313 0.174,0.151 10 *a

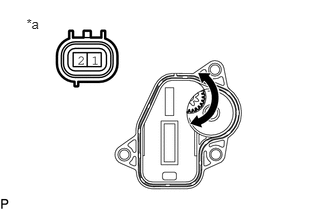

*a	Component without harness connected (Intake Air Control Valve Actuator)

Apply battery voltage to the connector, and check the operation of the intake air control valve actuator gear.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 1 Battery negative (-) → Terminal 2	intake air control valve actuator gear to right
Battery positive (+) → Terminal 2 Battery negative (-) → Terminal 1	intake air control valve actuator gear to left

NOTICE:

Apply battery voltage for 10 seconds or less each time the inspection is performed.

If the result is not as specified, replace the intake air control valve actuator.
