7GR-FKS INTAKE / EXHAUST INTAKE SYSTEM ON-VEHICLE INSPECTION

PROCEDURE

Hide Display 1.INSPECT INTAKE SYSTEM

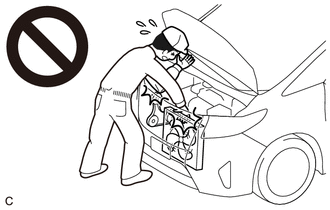

CAUTION:: To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the fan and generator V belt and cooling fans when working in the engine compartment with the engine running or the ignition switch on (IG).

HINT:: Perform "Inspection After Repairs" after repairing air leaks in the intake system.; Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION201902,999999,_51,_078720,_0381907,RM100000001G2VV,

Check that there are no vacuum leaks at the points shown in the illustration.

4,0.552 4.313,0.75 0.313,0.198 10 true *A

for LHD

Hide Display 2.PERFORM INITIALIZATION

Perform Inspection After Repair after repairing vacuum leaks in the intake system.
