RM35X0E _58 Vehicle Interior _079317 POWER OUTLETS (INT) _0385438 POWER OUTLET SOCKET(for Rear Side) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Rear Side) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 67912A 1.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0046,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0046,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0046,

Hide Display 67914B 2.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0001,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0001,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0001,

Hide Display 3.REMOVE REAR SEAT ASSEMBLY

a.

for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381335,RM100000001FZLG,

b.

for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381332,RM100000001FZL1,

Hide Display 73233 4.REMOVE OUTER LAP BELT ANCHOR COVER

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,202310,_58,_078602,_0387529,RM100000001GXU3_02_0114,202310,999999,_58,_078602,_0387529,RM100000002EQ3Z_02_0114,

Hide Display 73220 5.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,202310,_58,_078602,_0387529,RM100000001GXU3_02_0115,202310,999999,_58,_078602,_0387529,RM100000002EQ3Z_02_0124,

Hide Display 67935 6.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0027,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0027,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0027,

Hide Display 73370E 7.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR) (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,999999,_58,_078602,_0389937,RM100000001HCBE_09_0004,

Hide Display 58777A 8.REMOVE TOOL BAG HOLDER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0052,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0052,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0052,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0052,

Hide Display 62640M 9.REMOVE REAR QUARTER TRIM BOARD ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0031,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0031,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0031,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0031,

Hide Display 85532 10.REMOVE USB CHARGER SOCKET (for Rear Side)

a.

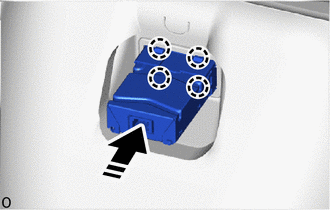

B533036C01

0,0 0,0 false

V113147

Remove in this Direction

Detach the claw and remove the USB charger socket as shown in the illustration.

Hide Display 62620K 11.REMOVE SIDE TRIM BOARD ASSEMBLY LH (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0051,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0051,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0051,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0051,

Hide Display 85532 12.REMOVE USB CHARGER SOCKET (for High Roof)

a.

B533036C01

0,0 0,0 false

V113147

Remove in this Direction

Detach the claw and remove the USB charger socket as shown in the illustration.

Hide Display 62520B 13.REMOVE QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0033,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0033,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0033,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0033,

Hide Display 85532 14.REMOVE USB CHARGER SOCKET (for Front Side)

a.

B533036C01

0,0 0,0 false

V113147

Remove in this Direction

Detach the claw and remove the USB charger socket as shown in the illustration.
