RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0385308 WASHER NOZZLE A

WIPER / WASHER WASHER NOZZLE REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.

PROCEDURE

Hide Display 53341B 1.REMOVE HOOD INSULATOR (w/ Hood Insulator)

Click hereVehicle Exterior>DOOR / HATCH>HOOD>DISASSEMBLY201902,201906,_59,_078503,_0385648,RM100000001GNF6_01_0002,201906,999999,_59,_078503,_0385648,RM100000001IQ0J_01_0002,

Hide Display 55879C 2.REMOVE COWL VENT SEAL

Click hereVehicle Exterior>DOOR / HATCH>HOOD>DISASSEMBLY201902,201906,_59,_078503,_0385648,RM100000001GNF6_01_0009,201906,999999,_59,_078503,_0385648,RM100000001IQ0J_01_0009,

Hide Display 85035 3.REMOVE WASHER NOZZLE SUB-ASSEMBLY

0,0 0,0 false

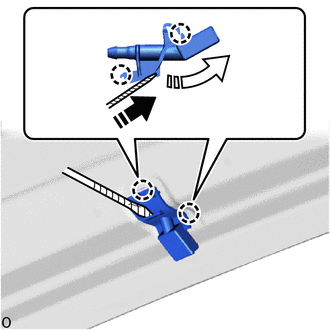

	Protective Tape
	Remove in this Direction (1)
	Remove in this Direction (2)

Using a screwdriver with its tip wrapped with protective tape, detach the claw as indicated by the arrows, in the order shown in the illustration to separate the washer nozzle sub-assembly.

NOTICE:: Be careful not to damage the windshield glass.

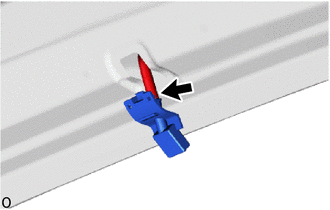

Disconnect the washer hose to remove the washer nozzle sub-assembly.

NOTICE:: Washer nozzle sub-assemblies cannot be reused.
