RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0385306 WIPER SWITCH A

WIPER / WASHER  WIPER SWITCH  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the RH side.



PROCEDURE

Hide 84650 1.INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

a.
B539254C01
0,0 0,0 false
V113147

Install in this Direction

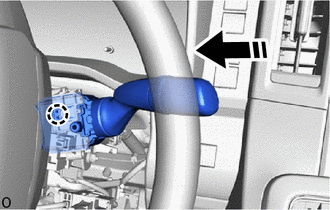

Attach the claw and install the windshield wiper switch assembly as shown in the illustration.


Hide 45286B 2.INSTALL UPPER STEERING COLUMN COVER

a.
B539250

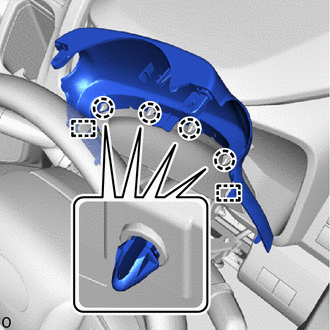

Attach the claw and guide to install the upper steering column cover to the meter hood spacer.


b.
B539255C01
0,0 0,0 false
V113147

Install in this Direction

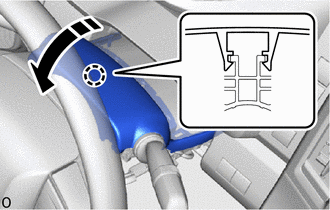

Attach the claw and install the upper steering column cover.


Hide 45287 3.INSTALL LOWER STEERING COLUMN COVER

a.
B539256C01
0,0 0,0 false
V113147

Install in this Direction

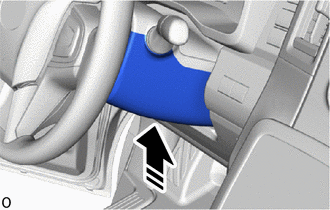

Install the lower steering column cover as shown in the illustration.


b.
B539257

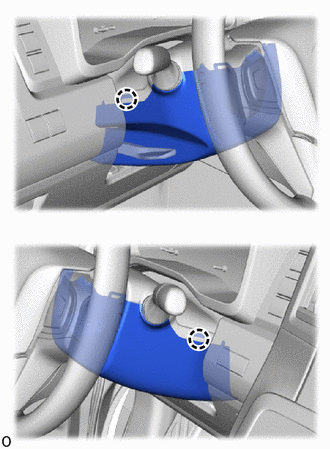

Attach the claw and install the lower steering column cover as shown in the illustration.


c.
B539246

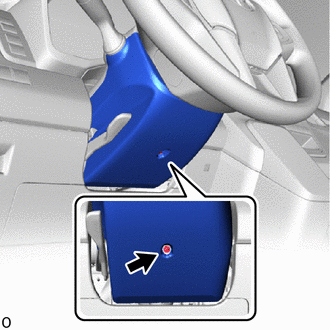

Install the screw.


d.
B539244

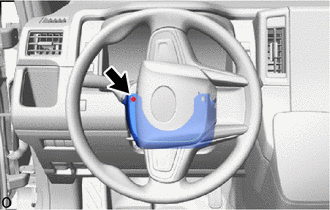

Turn the steering wheel assembly 90° to the left from the straight condition and install the screw shown in the illustration.


e.
B539245

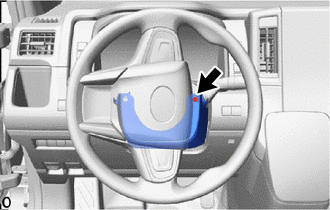

Turn the steering wheel assembly 90° to the right from the straight condition and install the screw shown in the illustration.
