AXLE AND DIFFERENTIAL  FRONT AXLE HUB  ON-VEHICLE INSPECTION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 5.INSPECT FRONT AXLE HUB BEARING LOOSENESS

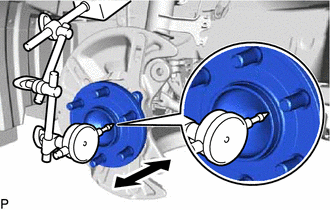

a.
C409461

Using a dial indicator with magnetic base, check for looseness near the center of the front axle hub sub-assembly LH.

Maximum looseness:

0.05 mm (0.00197 in.)


NOTICE:
·

Ensure that the dial indicator is set perpendicular to the measurement surface.

·

Keep the magnet of the dial indicator away from the front axle hub sub-assembly LH and front speed sensor LH.



HINT:

If the looseness exceeds the maximum, replace the front axle hub sub-assembly LH.



Hide 6.INSPECT FRONT AXLE HUB RUNOUT

a.
C409462

Using a dial indicator with magnetic base, check for runout on the surface of the front axle hub sub-assembly outside the front axle hub bolts.

Maximum runout:

0.05 mm (0.00197 in.)


NOTICE:
·

Ensure that the dial indicator is set perpendicular to the measurement surface.

·

Make sure to set the tip of the dial indicator towards the outside of the front axle hub bolts.

·

Keep the magnet of the dial indicator away from the front axle hub sub-assembly and front speed sensor LH.



HINT:

If the runout exceeds the maximum, replace the front axle hub sub-assembly LH.
