AXLE AND DIFFERENTIAL  FRONT AXLE HUB BOLT  REPLACEMENT


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 47313J 2.DISCONNECT FRONT FLEXIBLE HOSE

a.
C409454

Remove the bolt and disconnect the front flexible hose from the front shock absorber assembly LH.


Hide 3.DISCONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH

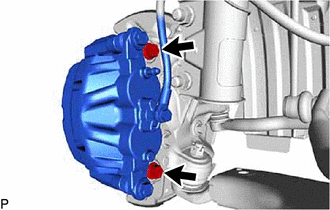

a.
C409455

Remove the 2 bolts and disconnect the front disc brake caliper assembly LH from the steering knuckle LH.

NOTICE:

Use wire or an equivalent tool to keep the front disc brake caliper assembly LH from hanging by the front flexible hose.



Hide 43502D 5.REMOVE FRONT AXLE HUB BOLT LH

a.
C405129
2.563,1 2.917,1 true 2.333,0.813 2.917,0.813 2.917,0.813 2.917,1.229 true 2.333,0.333 2.167,0.333 2.167,0.333 1.792,1.135 true 2.833,1.25 3.094,1.458 0.26,0.208 10 false *a 3.021,1.615 3.281,1.823 0.26,0.208 10 false *b 2.073,1.979 2.302,2.177 0.229,0.198 10 false *c 2.385,0.25 2.688,0.427 0.302,0.177 10 true SST
*a Service Nut
*b Hold
*c Turn


Temporarily install 2 service nuts to the front axle hub bolts as shown in the illustration.

Recommended service nut:

Thread diameter: 14.0 mm (0.551 in.)

Thread pitch: 1.5 mm (0.0591 in.)


NOTICE:

Install the service nuts to prevent damage to the front axle hub bolts.



b.

Using SST and a screwdriver or an equivalent tool to hold the front axle hub sub-assembly LH, remove the front axle hub bolt.

SST
09650-17011

NOTICE:

Do not damage the threads of the front axle hub bolts.



Hide 43502D 6.INSTALL FRONT AXLE HUB BOLT LH

a.

Temporarily install a new front axle hub bolt to the front axle hub sub-assembly LH.


b.

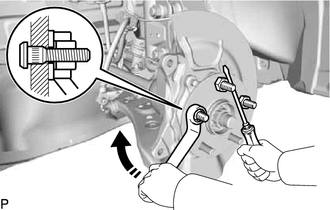

C405130
0.75,0.458 1.583,0.458 true 0.531,1.563 0.531,0.802 true 1.677,0.375 1.865,0.552 0.188,0.177 10 true *a 0.469,1.615 0.719,1.771 0.25,0.156 10 false *b 1.958,1.927 2.208,2.083 0.25,0.156 10 false *d 2.958,1.646 3.208,1.802 0.25,0.156 10 false *c
*a Service Nut
*b Washer
*c Hold
*d Turn


Install a washer and service nut to the front axle hub bolt as shown in the illustration.

Recommended service nut:

Thread diameter: 14.0 mm (0.551 in.)

Thread pitch: 1.5 mm (0.0591 in.)


HINT:

Recommended washer thickness is 5 mm (0.197 in.) or more.



c.

Using a screwdriver or an equivalent tool to hold the front axle hub sub-assembly LH, install the front axle hub bolt by tightening the service nut.

NOTICE:
·

Install the service nuts to prevent damage to the front axle hub bolts.

·

Do not damage the threads of the front axle hub bolts.




d.

Remove the 3 service nuts and washer from the 3 front axle hub bolts.


Hide 8.CONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH

a.
C409455

Connect the front disc brake caliper assembly LH to the steering knuckle LH with the 2 bolts.

Torque:
173 N*m (1764 kgf*cm, 128 ft.*lbf)

NOTICE:
·

Do not twist the front flexible hose when installing the front disc brake caliper assembly LH.

·

Make sure that there is no foreign matter on the threads of the bolt.




Hide 47313J 9.CONNECT FRONT FLEXIBLE HOSE

a.
C409458C01
0,0 0,0 false
V100135

Hook


Set the 2 front speed sensor LH hooks on the front shock absorber assembly LH.

NOTICE:

Do not twist the front speed sensor LH when installing it.



b.
C409454

Connect the front flexible hose to the front shock absorber assembly LH with the bolt.

Torque:
25 N*m (255 kgf*cm, 18 ft.*lbf)

NOTICE:

Do not twist the front flexible hose LH when installing it.
