RM35X0E _52 Drivetrain _079259 AXLE AND DIFFERENTIAL _0385092 REAR AXLE SHAFT(for Rear Disc Brake) A

AXLE AND DIFFERENTIAL REAR AXLE SHAFT(for Rear Disc Brake) DISASSEMBLY

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 42312D 1.REMOVE REAR AXLE SHAFT SNAP RING LH

Using a snap ring expander, remove the rear axle shaft snap ring LH.

Hide Display 42312 2.REMOVE REAR AXLE SHAFT LH

1.948,0.688 2.031,0.354 2.031,0.354 2.115,0.354 false 1.948,1.719 2,1.5 2,1.5 2.083,1.5 true 2.177,0.271 2.51,0.448 0.333,0.177 10 false SST 2.135,1.417 2.469,1.573 0.333,0.156 10 false SST

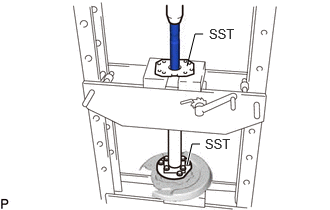

Using SST and a press, press out the rear axle shaft LH.

SST: 09521-60011
09521-25012

Grind the rear inner axle bearing retainer LH using a grinder, and then remove it with a chisel.

Remove the rear axle shaft washer LH from the rear axle shaft LH.

Hide Display 42450B 3.REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH

Temporarily install 4 nuts to the backing plate to rear axle housing setting bolts.

Recommended service nut:: Thread diameter: 12.0 mm (0.472 in.); Thread pitch: 1.25 mm (0.0492 in.)

NOTICE:: Do not use any nuts removed from the vehicle, as they may be damaged.

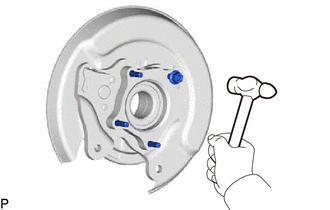

Using a hammer, remove the 4 backing plate to rear axle housing setting bolts and rear axle hub and bearing assembly LH.

Remove the 4 nuts.

Hide Display 42441B 4.REMOVE BRAKE DRUM OIL DEFLECTOR LH

2.583,0.25 2.75,0.094 2.75,0.094 2.833,0.094 false 2.885,0.021 3.26,0.229 0.375,0.208 10 false SST

Using SST, remove the 6 hub bolts.

SST: 09650-17011

NOTICE:: ·

Do not deform the oil deflector.

·

Make sure to align the notch of SST with the flange of the oil deflector.

Remove the brake drum oil deflector LH and brake drum oil deflector gasket LH from the rear axle shaft LH.
