RM35X0E _52 Drivetrain _079259 AXLE AND DIFFERENTIAL _0385090 REAR AXLE SHAFT(for Rear Drum Brake) A

AXLE AND DIFFERENTIAL REAR AXLE SHAFT(for Rear Drum Brake) REASSEMBLY

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 42441B 1.INSTALL BRAKE DRUM OIL DEFLECTOR LH

1.979,0.75 1.979,0.219 true 3,1.333 3,0.219 true 3.156,0.219 0.917,0.219 true 3.188,0.115 3.417,0.313 0.229,0.198 10 false *a

*a	Oil Drain Hole

Install a new brake drum oil deflector gasket LH and the brake drum oil deflector LH to the rear axle shaft LH.

HINT:: Align the 3 oil drain holes.

Insert 6 new rear axle hub bolts through the rear axle shaft LH.

Secure the rear axle shaft LH between aluminum plates in a vise.

NOTICE:: Do not overtighten the vise.

2.948,0.323 2.865,0.323 2.865,0.323 2.865,0.635 false 2.885,1.323 3.052,1.323 3.052,1.323 3.052,1.052 true 3.01,0.25 3.229,0.406 0.219,0.156 10 false *a 2.667,1.25 2.917,1.417 0.25,0.167 10 false *b

*a	Plate Washer
*b	Service Nut

Temporarily install a plate washer and nut to each of the 6 rear axle hub bolts as shown in the illustration.

Recommended service nut:: Thread diameter: 14.0 mm (0.551 in.); Thread pitch: 1.5 mm (0.0591 in.)

HINT:: Recommended washer thickness is 5 mm (0.197 in.) or more.

Install the 6 rear axle hub bolts by tightening each nut.

Remove the plate washer and nut from each rear axle hub bolt.

Hide Display 42450B 2.INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH

Install a new rear axle hub and bearing assembly LH to the backing plate.

NOTICE:: Make sure the bearing is securely installed to the parking brake plate.

1.917,1.083 2.833,1.25 true 1.938,1.542 2.833,1.25 true 2,0.417 2.417,0.417 true 2.875,1.156 3.188,1.313 0.313,0.156 10 false *a 2.5,0.344 2.813,0.5 0.313,0.156 10 false *b

*a	Socket Wrench
*b	Press

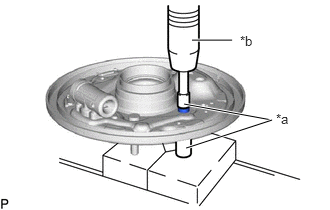

Using 2 socket wrenches and a press, press in the 4 backing plate to rear axle housing setting bolts.

Hide Display 42312 3.INSTALL REAR AXLE SHAFT LH

1.188,1.042 1.604,1.042 true 0.417,1.833 0.417,1.375 true 2.167,1.25 2.583,1.25 true 2.26,1.646 2.75,3.083 true 2.167,2.385 2.75,3.083 true 2.083,2.583 2.75,3.083 2.75,3.083 2.917,3.083 true 2.99,3 3.344,3.167 0.354,0.167 10 false SST 0.344,1.896 0.573,2.063 0.229,0.167 10 false *b 2.667,1.167 2.917,1.417 0.25,0.25 10 false *c 1.646,0.948 1.875,1.198 0.229,0.25 10 false *a

*a	Tapered Surface
*b	Chamfered Surface
*c	Press

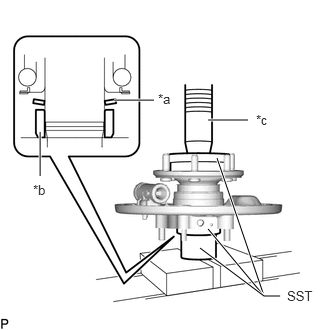

Install a new rear axle shaft washer LH and a new rear inner axle bearing retainer LH to the axle hub as shown in the illustration.

NOTICE:: ·

Install the rear axle shaft washer LH with its tapered surface facing downward.

·

Install the rear inner axle bearing retainer LH with its chamfered surface facing downward.

Using SST and a press, press in the rear axle shaft LH.

SST: 09631-12090
09726-40010
09951-01100

NOTICE:: Make sure the bearing is securely installed to the rear axle shaft LH.

Hide Display 42312D 4.INSTALL REAR AXLE SHAFT SNAP RING LH

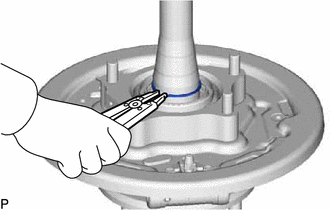

Using a snap ring expander, install a new rear axle shaft snap ring LH.
