FRONT SUSPENSION  FRONT LOWER SUSPENSION ARM  ON-VEHICLE INSPECTION


CAUTION / NOTICE / HINT

HINT:
·

The following procedure is for the LH side.

·

Use the same procedure for the RH side and LH side.



PROCEDURE

Hide 48069 1.INSPECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

a.

Lift up the vehicle.


b.

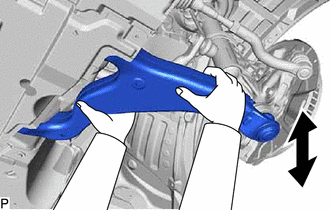

C412735

Move the front lower No. 1 suspension arm sub-assembly up and down by hand with a force of 294 N (30 kgf, 66.1 lbf) or more to check that there is no looseness at the front lower No. 1 suspension arm sub-assembly.

HINT:

If the front lower No. 1 suspension arm sub-assembly is loose, replace it with a new one.
