RM35X0E _59 Vehicle Exterior _079319 MIRROR (EXT) _0384986 OUTER MIRROR SWITCH A

MIRROR (EXT) OUTER MIRROR SWITCH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure below is for LHD vehicles.

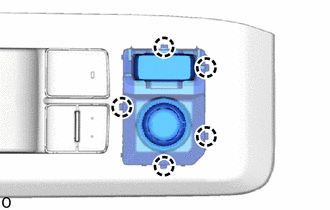

Hide Display 84870A 1.INSTALL OUTER MIRROR SWITCH ASSEMBLY

Attach the claw to install the outer mirror switch assembly.

Hide Display 2.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
