HEATING / AIR CONDITIONING  HEATER SWITCH  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 87290 1.INSTALL HEATER SWITCH ASSEMBLY

a.

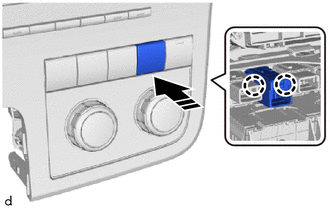

E415408C01
0,0 0,0 false
V113147

Install in this Direction


for Automatic Air Conditioning System:

i.

Attach the claw to install the heater switch assembly.



b.

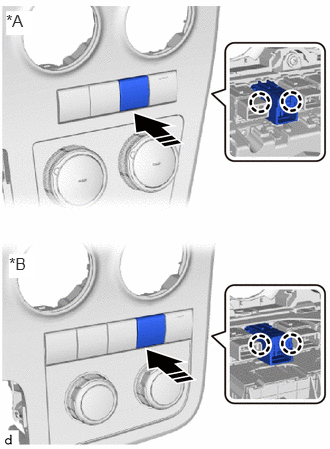

E415409C01
0.063,0.115 0.344,0.365 0.281,0.25 12 true *A 0.094,2.646 0.375,2.896 0.281,0.25 12 true *B
*A for Full-trim
*B for Semi-trim
V113147

Install in this Direction


for Manual Air Conditioning System:

i.

Attach the claw to install the heater switch assembly.



Hide 84453 2.INSTALL IDLE UP SWITCH

a.
E415408C01
0,0 0,0 false
V113147

Install in this Direction


for Automatic Air Conditioning System:

i.

Attach the claw to install the idle up switch.



b.
E415409C01
0.063,0.115 0.344,0.365 0.281,0.25 12 true *A 0.094,2.646 0.375,2.896 0.281,0.25 12 true *B
*A for Full-trim
*B for Semi-trim
V113147

Install in this Direction


for Manual Air Conditioning System:

i.

Attach the claw to install the idle up switch.
