RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384900 HEATER SWITCH A

HEATING / AIR CONDITIONING HEATER SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0003,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0003,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0003,

Hide Display 33622 2.DISCONNECT NO. 1 SHIFT LEVER KNOB COVER (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL201902,999999,_52,_078741,_0382080,RM100000001G8N4_01_0008,

Hide Display 33504F 3.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL201902,999999,_52,_078741,_0382080,RM100000001G8N4_01_0004,

Hide Display 58840Q 4.REMOVE SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0005,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0005,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0005,

Hide Display 35970F 5.REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0006,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0006,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0006,

Hide Display 55405B 6.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0007,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0007,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0007,

Hide Display 84453 7.REMOVE IDLE UP SWITCH

a.

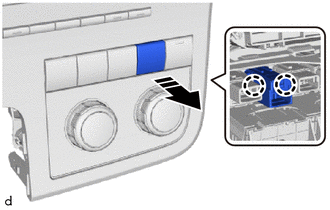

E415404C01

0,0 0,0 false

V113147

Remove in this Direction

for Automatic Air Conditioning:

i.

Detach the claw and remove the idle up switch.

b.

for Manual Air Conditioning:

i.

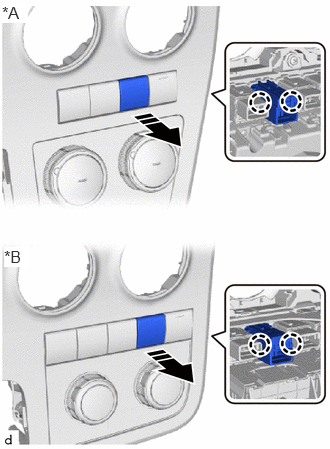

E415405C01

0.021,0.031 0.292,0.24 0.271,0.208 12 true *A 0.042,2.573 0.313,2.781 0.271,0.208 12 true *B

*A	for Full-trim
*B	for Semi-trim
	Remove in this Direction

Detach the claw and remove the idle up switch.

Hide Display 87290 8.REMOVE HEATER SWITCH ASSEMBLY

a.

E415404C01

0,0 0,0 false

V113147

Remove in this Direction

for Automatic Air Conditioning:

i.

Detach the claw and remove the heater switch assembly.

b.

for Manual Air Conditioning:

i.

E415405C01

0.021,0.031 0.292,0.24 0.271,0.208 12 true *A 0.042,2.573 0.313,2.781 0.271,0.208 12 true *B

*A	for Full-trim
*B	for Semi-trim
	Remove in this Direction

Detach the claw and remove the heater switch assembly.
