RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384896 VISCOUS HEATER A

HEATING / AIR CONDITIONING  VISCOUS HEATER  REMOVAL


PROCEDURE

Hide 87209 4.DISCONNECT WATER HOSE SUB-ASSEMBLY

a.

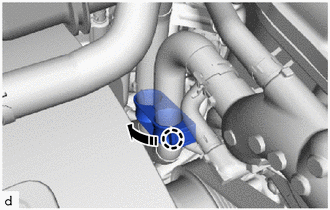

E415190C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw, open the hose clamp and disconnect each hose.


b.

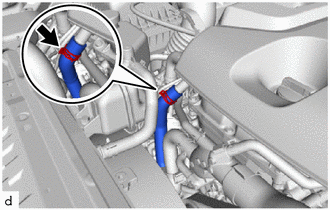

E415136

Using pliers, grip the claw of the hose clip and slide the hose clip to disconnect the water hose sub-assembly (inletside).

NOTICE:
·

Do not apply excessive force to the water hose and water hose sub-assembly (inletside).

·

Prepare a drain pan or cloth in case the coolant leaks.




c.

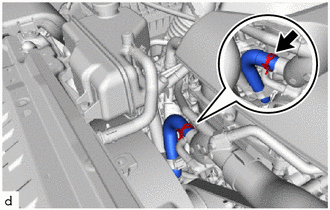

E415138

Using pliers, grip the claws of the hose clip and slide the hose clip to disconnect the water hose sub-assembly (outletside).

NOTICE:
·

Do not apply excessive force to the water hose and water hose sub-assembly (outletside).

·

Prepare a drain pan or cloth in case the coolant leaks.




Hide 88704 5.DISCONNECT SUCTION HOSE SUB-ASSEMBLY

a.

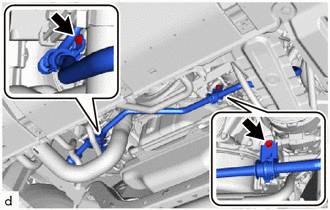

E415191

Remove the bolt and disconnect the suction hose sub-assembly.


Hide 87120G 6.REMOVE VISCOUS HEATER WITH MAGNET CLUTCH ASSEMBLY

a.

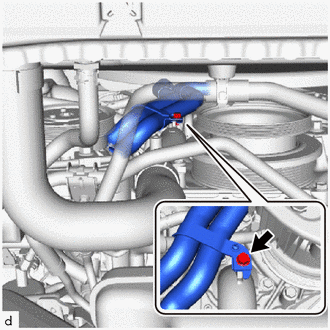

E415192

Remove the bolt and disconnect the bracket.


b.

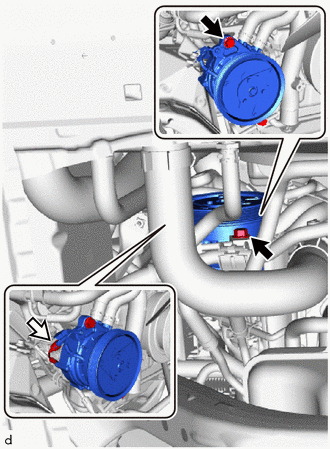

E415206C01
0,0 0,0 false
V100135

Bolt
V100136

Connector


Disconnect the connector.


c.

Remove the 2 bolts and viscous heater with magnet clutch assembly.


Hide 87209 7.REMOVE WATER HOSE SUB-ASSEMBLY

a.
E415227

Remove the screw and bracket.


b.
E415333

Using pliers, grip the claws of the hose clip and slide the hose clip to remove the water hose sub-assembly (outlet side).

NOTICE:
·

Do not apply excessive force to the water hose and water hose sub-assembly (outlet side).

·

Prepare a drain pan or cloth in case the coolant leaks.




c.
E415230

Using pliers, grip the claw of the hose clip and slide the hose clip to remove the water hose sub-assembly (inlet side).

NOTICE:
·

Do not apply excessive force to the water hose and water hose sub-assembly (inlet side).

·

Prepare a drain pan or cloth in case the coolant leaks.
