RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384895 AIR CONDITIONING PRESSURE SENSOR A

HEATING / AIR CONDITIONING  AIR CONDITIONING PRESSURE SENSOR  INSTALLATION


PROCEDURE

Hide 88719A 1.INSTALL AIR CONDITIONER PRESSURE SENSOR

a.

Remove the vinyl tape from the air conditioner tube and accessory assembly and the connecting part of the air conditioner pressure sensor.


b.

Apply sufficient compressor oil to the O-ring of a new air conditioner pressure sensor and the connecting surface.

Compressor Oil:

ND-OIL 8 or equivalent


NOTICE:

Keep the O-rings and O-ring fitting surfaces free of foreign matter.



c.
E415288C01
0.99,0.896 0.99,1.51 true 1.063,3.333 1.063,3.948 true 2.802,1.021 2.813,1.594 true 2.771,3.521 2.781,4.094 true 0.031,0.042 0.375,0.24 0.344,0.198 12 true *A 0.021,2.594 0.344,2.792 0.323,0.198 12 true *B 2.76,1.615 2.969,1.823 0.208,0.208 10 true *a 0.927,1.531 1.135,1.708 0.208,0.177 10 true *b 1,3.969 1.208,4.146 0.208,0.177 10 true *b 2.729,4.104 2.948,4.292 0.219,0.188 10 true *a
*A for 1GD-FTV
*B for 7GR-FKS
*a Turn
*b Hold


Using a 27 mm deep socket wrench, install the air conditioner pressure sensor.

Torque:
10.8 N*m (110 kgf*cm, 8 ft.*lbf)


d.

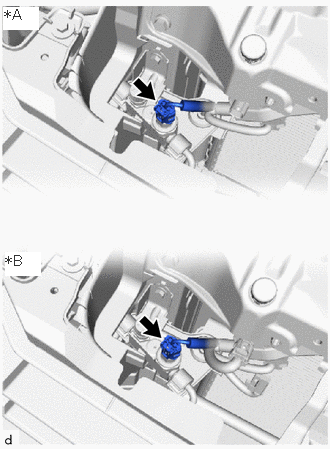

E415285C01
0.031,0.063 0.406,0.302 0.375,0.24 12 true *A 0.042,2.625 0.417,2.865 0.375,0.24 12 true *B
*A for 1GD-FTV
*B for 7GR-FKS


Connect the connector.
