HEATING / AIR CONDITIONING  REAR EVAPORATOR TEMPERATURE SENSOR(for Rear Cooler)  INSPECTION

0.396,0.885 0.396,0.365 0.396,0.365 0.75,0.365 false 2.042,0.188 2.354,0.344 0.313,0.156 10 false *a 0.792,0.281 1.104,0.438 0.313,0.156 10 false *b 0.073,2.927 0.385,3.083 0.313,0.156 10 false *c 1.896,4.458 2.208,4.615 0.313,0.156 10 false *d 0.24,1.854 0.854,2.052 0.615,0.198 10 false 10.0 0.302,2.073 0.917,2.271 0.615,0.198 10 false 9.0 0.302,2.292 0.917,2.49 0.615,0.198 10 false 8.0 0.302,2.51 0.917,2.708 0.615,0.198 10 false 7.0 0.302,2.729 0.917,2.927 0.615,0.198 10 false 6.0 0.302,2.948 0.917,3.146 0.615,0.198 10 false 5.0 0.313,3.156 0.927,3.354 0.615,0.198 10 false 4.0 0.313,3.375 0.927,3.573 0.615,0.198 10 false 3.0 0.313,3.583 0.927,3.781 0.615,0.198 10 false 2.0 0.313,3.813 0.927,4.01 0.615,0.198 10 false 1.0 0.313,4.021 0.927,4.219 0.615,0.198 10 false 0.0 0.448,4.125 1.063,4.323 0.615,0.198 10 false -10 1.24,4.125 1.854,4.323 0.615,0.198 10 false 0 1.906,4.125 2.521,4.323 0.615,0.198 10 false 10 2.635,4.125 3.25,4.323 0.615,0.198 10 false 20 3.24,4.125 3.406,4.313 0.167,0.188 10 false 30 0.448,4.271 1.063,4.469 0.615,0.198 10 false (14) 1.156,4.271 1.771,4.469 0.615,0.198 10 false (32) 1.865,4.271 2.479,4.469 0.615,0.198 10 false (50) 2.583,4.271 3.198,4.469 0.615,0.198 10 false (68) 3.177,4.271 3.427,4.5 0.25,0.229 10 false (86)

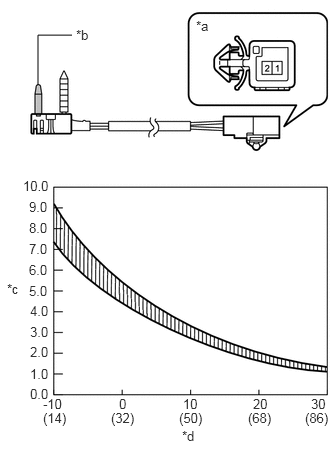

*a	Component without harness connected (No. 2 Cooler Thermistor (Rear Evaporator Temperature Sensor))
*b	Sensing Portion
*c	Resistance (kΩ)
*d	Temperature (°C (°F))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	-10°C (14°F)	7.30 to 9.10 kΩ
	-5°C (23°F)	5.65 to 6.95 kΩ
	0°C (32°F)	4.40 to 5.35 kΩ
	5°C (41°F)	3.40 to 4.15 kΩ
	10°C (50°F)	2.70 to 3.25 kΩ
	15°C (59°F)	2.14 to 2.58 kΩ
	20°C (68°F)	1.71 to 2.05 kΩ
	25°C (77°F)	1.38 to 1.64 kΩ
	30°C (86°F)	1.11 to 1.32 kΩ

NOTICE:

·

Hold the sensor only by its connector. Touching the sensor may change the resistance value.

·

When measuring, the sensor temperature must be the same as the ambient temperature.

HINT:

As the temperature increases, the resistance decreases (See the graph).

If the result is not as specified, replace the No. 2 cooler thermistor (rear evaporator temperature sensor).
